ADLINK’s new SMARC computer on module features multiple I/O interfaces

ADLINK Technology, Inc’s LEC-BTS smart mobility architecture (SMARC) form factor computer on module (COM) runs a single, dual, or quad core Intel Atom processor E3800 series system-on-chip at from 1.46 to 1.91 GHz with up to 4GB DDR3L memory at 1066/1333 MHz.

Jan 6th, 2015
Content Dam Vsd En Articles 2015 01 Adlink S New Smarc Computer On Module Features Multiple I O Interfaces Leftcolumn Article Thumbnailimage File

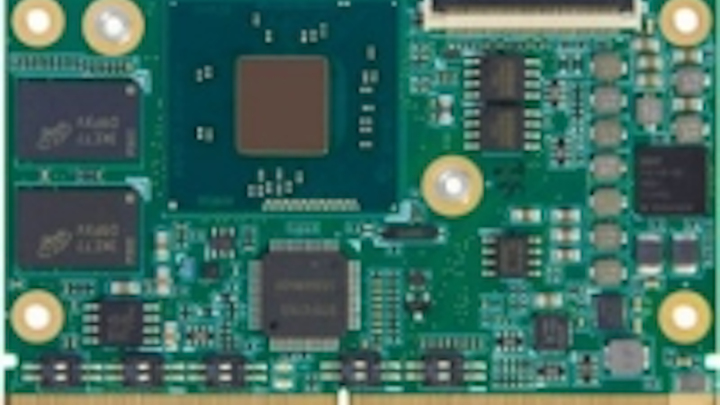

ADLINK Technology, Inc’s LEC-BTS smart mobility architecture (SMARC) form factor computer on module (COM) runs a single, dual, or quad core Intel Atom processor E3800 series system-on-chip at from 1.46 to 1.91 GHz with up to 4GB DDR3L memory at 1066/1333 MHz. SMARC is an open and global standard for new generation embedded applications that takes advantage of both legacy x86 and ARM-based designs. The COM features multiple I/O interfaces, including both PC-type interfaces such as 3x PCIe x1, SATA 3Gb/s, HD audio and HDMI; and modern ARM-type interfaces such as SPI, I2C, I2S. MIPI CSI camera, single channel LVDS (24-bit), 3x USB 2.0, 1x USB 3.0, 12x GPIO, 1x SDIO, and 2x UART serial ports. In addition, the COM has a GigE camera interface.

The LEC-BTS is designed for portable of small stationary systems in such applications as industrial automation, medical testing and measurement, and transportation.

To Learn More:

Contact: ADLINK Technology, Inc.
Headquarters: San Jose, CA, USA
Product:
LEC-BTS SMARC COM
Key Features: Single/dual/quad-core Intel Atom processor E3800 series system-on-chip, HDMI and LVDS, GigE camera interface, 1 x SATA 3 Gb/s, 1 x USB 3.0, 3 x USB 2.0.

What ADLINK says:
View more information on the LEC-BTS computer on module.
