LMI Technologies announces HDS 120 3D scanner

LMI Technologies’ HDI 120 3D scanner is a handheld 3D scanning system which uses blue LED projection technology to deliver high resolution 3D models in such applications as reverse engineering, 3D inspection, measurement, and visualization.

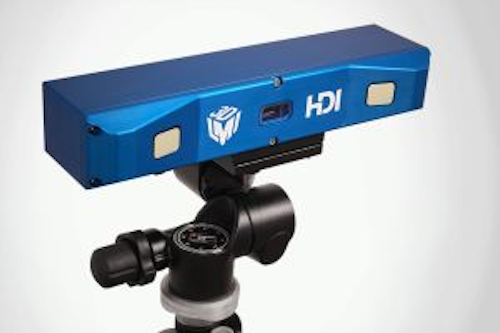

Content Dam Vsd Online Articles 2013 09 Hdi 120 3d Scanner Side View Copy

LMI Technologies’ HDI 120 3D scanner is a handheld3D scanning system which uses blue LED projection technology to deliver high resolution 3D models. The scanner utilizes two 1.3 MPixel cameras and is powered by FlexScan 3D software, which enables users to process 3D data with built-in data editing, alignment, and merging capabilities without exporting to a separate post-processing software application. It features a scan speed of 0.3 seconds per scan, an accuracy of 60 µm – 118 µm, a depth of field of 180mm, and a GigE interface. HDI 120 3D scanners are suitable for use in reverse engineering, 3D inspection, measurement, and visualization applications.

To Learn More:

Contact:LMI Technologies
Headquarters
: Delta, BC, Canada
Product:
HDI 120 3D scanner
Key Features:
Two 1.3 MPixel cameras, FlexScan 3D image processing software, scan speed of 0.3 seconds per scan, an accuracy of 60 µm – 118 µm, a depth of field of 180mm, GigE interface.

What LMI Technologies says:
View more information on the HDI 120 3D scanner.
