Image processing system inspects commercial vehicle brake system

Neupro Solutions designed an image processing system for brake manufacturing company Knorr-Bremse which features Allied Vision Technologies cameras, Teledyne DALSA image processing software, Schneider lenses, and Z-Laser lasers.

Sep 20th, 2013

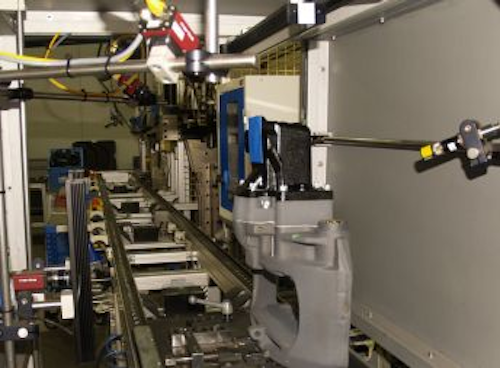

Content Dam Vsd Online Articles 2013 09 Brake Inspection1   Copy

Needing an image processing system that could analyze and verify the quality of commercial vehicle brakes, Knorr-Bremse, a worldwide manufacturer of braking systems in Bavaria, enlisted the help of systems integrator Neupro Solutions.

To build a system that could meet the needs of Knor-Bremse, Neupro collaborated with three other companies. First, Stemmer Imaging supplied the image processing components of the system. Two Manta G-504C cameras and one Manta G-146CAllied Vision Technologies camera equipped with Schneider lenses provide the vision portion of the system.

Manta G-504C cameras are 5 MPixel GigE Vision cameras with Sony ICX655 CMOS image sensors. These cameras run at 9 fps and feature robust metal housing. Manta G-146C cameras are 1.4 MPixel GigE Vision cameras with Sony ICX267 CCD image sensors. The G-146C cameras run at 17 fps and, like the G-504C, have optionally available Power over Ethernet.

In addition to the AVT cameras, the optical component of the system also includes two line lasers from Z-Laser and Sherlock image processing software from Teledyne DALSA. Sherlock software features extensive image preprocessors and advanced calibration for image correction and measurement translation and supports a variety of communication methods and protocols for factory integration.

Streicher Maschineabau created the control cabinet, and Oracle provided a database for image and inspection data, which used for verification purposes.

"Due to the low and varying customer-dependent quantities and the high-level of variance in disc brake production, we started to think about a data base", explained Dieter Progl, Managing Director at Neupro in the press release. “Neupro is the official partner of the data base manufacturer Oracle and was therefore able to provide a suitable solution for the combinatorics including part number and test number within the short period of time.”
