CoaXPress frame grabbers from Euresys target 3D inspection applications

Featuring a Quad CXP-6 CoaXPress interface, the Coaxlink Quad 3D-LLE frame grabber from Euresys can generate 16-bit 3D height maps, enabling it to be deployed in 3D vision measurement systems.

Content Dam Vsd En Articles 2017 06 Coaxpress Frame Grabbers From Euresys Target 3d Inspection Applications Leftcolumn Article Headerimage File

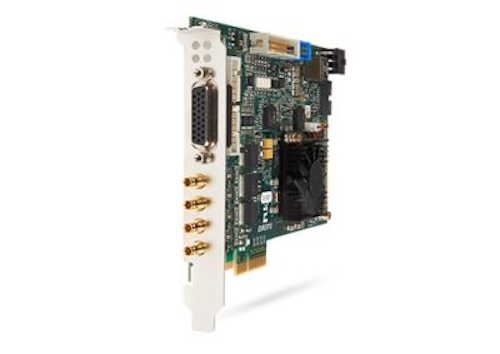

Featuring a Quad CXP-6 CoaXPress interface, the Coaxlink Quad 3D-LLE frame grabber from Euresyscan generate 16-bit 3D height maps, enabling it to be deployed in 3D vision measurement systems. An on-board FPGA measures the position of the laser line during the image acquisition without loading the host CPU, and the frame grabber generates 19,000 profiles/s from 1024 x 128 images and 38,000 profiles/s from 1024 x 64 images and features a choice of maximum, peak, and center of gravity algorithms. Additionally, the frame grabber has an accuracy of 1/256 pixel with peak and COG algorithms. Like other Euresys frame grabbers, the Coaxlink Quad 3D-LLE features the Memento Event Logging Tool, which is a development and debugging tool that records an accurate log of all the events related to the camera, the frame grabber, and its driver, as well as the application.

To Learn More:

Contact:Euresys
Headquarters
: Angleur, Belgium
Products:
Coaxlink Quad 3D-LLE frame grabber
Key Features:
Quad CXP-6 CoaXPress interface, laser line extraction with zero host CPU usage, real-time generation of 16-bit 3D height maps.

What Euresys says:
View more information on the frame grabber.
