16 MPixel USB 3.0 camera introduced by Lumenera

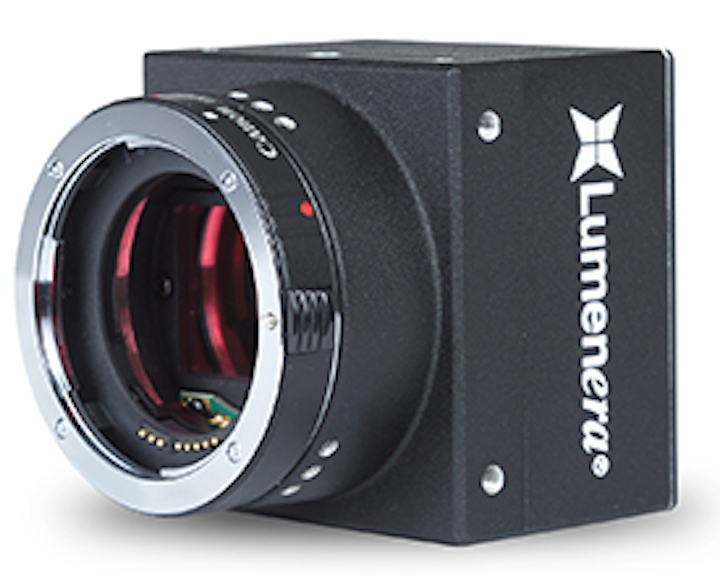

A Vision Systems Design Innovators Award winner, the Lt16059H USB 3.0 camera from Lumenera features a 35mm 16 MPixel ON Semiconductor KAI-16070 4-tap CCD image sensor with a 7.4 µm pixel size that can achieve a frame rate of 12 fps.

Content Dam Vsd En Articles 2015 09 16 Mpixel Usb 3 0 Camera Introduced By Lumenera Leftcolumn Article Headerimage File

A Vision Systems Design Innovators Award winner, the Lt16059H USB 3.0 camera from Lumenera features a 35mm 16 MPixel ON Semiconductor KAI-16070 4-tap CCD image sensor with a 7.4 µm pixel size that can achieve a frame rate of 12 fps in overclocked mode. The camera’s "dual-gain high dynamic range" (HDR) implementation outputs the same frame processed through two different gain amplifiers, which produces a crisp merged image with no ghosting effects. Additionally, the camera features an 82 dB linear dynamic range, Canon EF lens mount with fully integrated controller for auto focus/iris, locking industrial USB 3.0 connector, locking GPIO connector support 2 output, 2 input and 2 software configurable I/O, and binning. The Lt16059H USB 3.0 camera is suitable for use in such applications as traffic/intelligent transportation, UAVs, factory automation. and biometrics.

To Learn More:

Contact:Lumenera
Headquarters Ottawa, ON, Canada
Product: Lt16059H USB 3.0 camera
Key Features:
16 MPixel ON Semiconductor KAI-16070 4-tap CCD image sensor, 4 µm pixel size, 12 fps, dual-gain high dynamic range feature.

What Lumenera says:
View more information on the Lt16059H.
