High-speed cameras from Lambert Instruments target machine vision and research applications

Featuring a CoaXPress interface, the HS series of high-speed cameras from Lambert Instruments target machine vision and research applications, and feature a 2.9 MPixel CMOS image sensor that can achieve frame rates of 540 fps.

Content Dam Vsd En Articles 2015 06 High Speed Cameras From Lambert Instruments Target Machine Vision And Research Applications Leftcolumn Article Thumbnailimage File

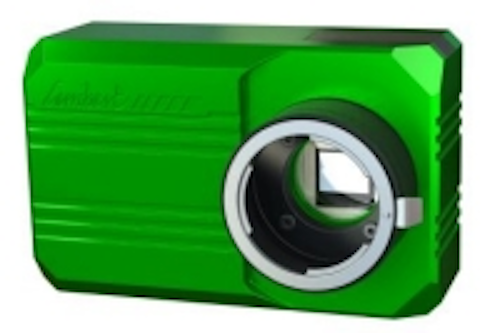

Featuring a CoaXPress interface, the HS series of high-speed cameras from Lambert Instruments are available in two models: the HS540M and the HS540S. The HS540M, which targets research applications, features 16GB of internal storage, while the HS540S is a streaming high-speed Power over CoaXPress camera that targets industrial machine vision applications. Both cameras feature a 2.9 MPixel global shutter CMOS image sensor with an 8 µm pixel size that is able to record full-resolution images at 540 fps. Additionally, the camera can achieve frame rates up of 5,000 fps at 480 x 480, and even up to 170,000 fps at further reduced resolution. The features of the camera, which is GenICam-compliant, were determined with the EMVA 1288 standard.

To Learn More:

Contact:Lambert Instruments
Headquarters: Groningen, The Netherlands
Product:
HS series high-speed cameras
Key Features:
2.9 MPixel global shutter CMOS image sensor, 540 fps (full resolution), CoaXPress interface, GenICam-compliant.

What Lambert Instruments says:
View more information on the HS series.
