Specialised Imaging's trajectory tracking features motorized three-axis remote control

The Trajectory Tracker 2 video trajectory tracking system from Specialised Imaging can precisely correlate high-speed video data with 3-D visualization and measurement in ballistics studies.

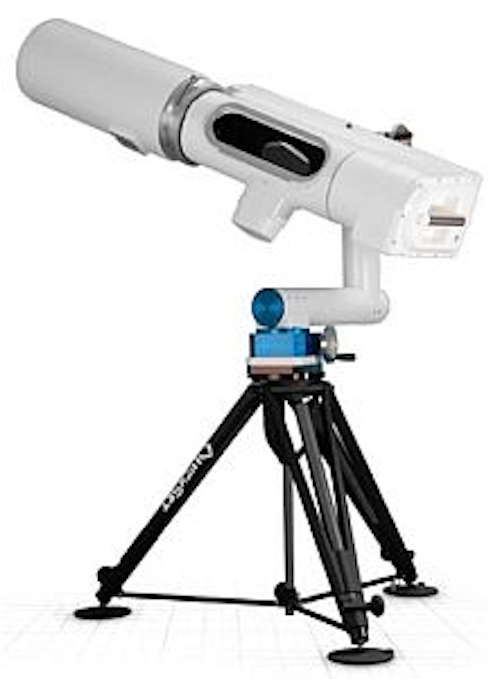

Specialised Imaging Trajectory Tracker 2 video tracking system
Specialised Imaging Trajectory Tracker 2 video tracking system

The Trajectory Tracker 2 video trajectory tracking system can precisely correlate high-speed video data with 3-D visualization and measurement in ballistics studies. The system uses a computer-controlled triggered rotating mirror positioned in front of a high-speed video camera. It offers full motorized three-axis remote control and pseudo real-time scan correction. It can observe objects over more than 100 m with tracking accuracy better than 0.2° over the full scan.
Specialised Imaging
Tring, UK

-- Posted by Vision Systems Design

View More New Products

---

NEW PRODUCT PRESS RELEASE

3D Flight Characterization of High-Speed Objects…

Specialised Imaging Ltd. has announced a new version of its popular Trajectory Tracker video tracking system to precisely correlate high-speed video data with 3D visualisation and measurement information.

Designed to enable engineers and ballisticians fully understand the flight behaviour of high speed objects the SI Tracker 2 builds upon the proven performance of its predecessor with new facility for full motorised 3-axis remote control, pseudo real-time scan correction and greater accuracy all in a compact lightweight frame. Designed to house the most modern high speed video cameras the SI Tracker 2 offers unmatched performance, durability and ease-of-use. The new system provides consistent and accurate tracking of objects in flight using a computer-controlled triggered rotating mirror positioned infront of a high speed video camera.

In order to fully evaluate the failure modes of high speed objects, it is often necesary to observe their flight performance over a significant proportion of the trajectory. The SI Tracker 2 allows observations to be made of inflight behaviour of high-speed objects over more than 100 metres with a tracking accuracy of better than 0.2 degrees over its full scan. The resulting slow motion record of the test object inflight allows accurate diagnosis of events such as fin deployment and motor burn time as well as calculation of pitch, yaw and spin rate.

Using multiple input triggers positioned down range enables the SI Tracker 2 to correct in real-time scan speed and position thereby allowing accurate 3D tracking of high-speed objects such as Earth re-entry space vehicles that exhibit unpredictable flight behaviour.

For further information on the SI Tracker 2 please contact Specialised Imaging Ltd on telephone +44-1442-827728 or by email to info@specialised-imaging.com.

Specialised Imaging Ltd. is a knowledgeable, dynamic company focused upon design, manufacture, service and supply of ultra high-speed imaging systems and components for industrial, defence and scientific applications. The company's continuing policy is to invest in the development of innovative imaging solutions, incorporate the latest technological advances and use improved components wherever possible. A total commitment to quality and a thorough understanding of applications are held as the keys to the future.

SOURCE: Specialised Imaging
