FLIR infrared camera designed for drones to be shown at XPONENTIAL 2017

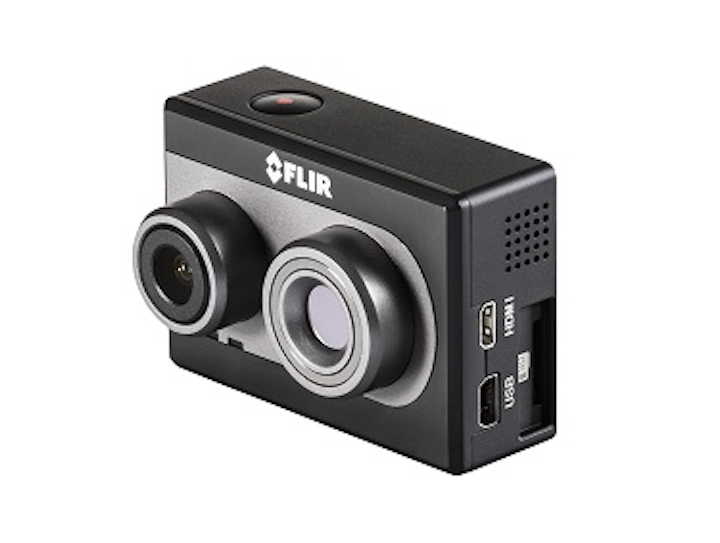

Designed for deployment on drones, the FLIR Duo is a dual sensor thermal and visible light imager that is the same size and shape as the most popular action cameras, and includes similar features, such as on-board recording and remote control of camera functions.

Content Dam Vsd En Articles 2017 04 Flir Infrared Camera Designed For Drones To Be Shown At Xponential 2017 Leftcolumn Article Headerimage File

Designed for deployment on drones, the FLIR Duo is a dual sensor thermal and visible light imager that is the same size and shape as the most popular action cameras, and includes similar features, such as on-board recording and remote control of camera functions. FLIR Duo features the Lepton thermal imaging sensor, which is a 160 x 120 uncooled VOx microbolometer imager with a 7.5 to 13.5 µm spectral band. The Duo also features a 1920 x 1080 visible color camera along with FLIR’s MSX (multispectral dynamic imaging) enhancement, which enhances thermal images with visible light detail for extra perspective. Additionally, Duo also comes with a fully radiometric variant called Duo R that delivers accurate, calibrated temperature measurements in every pixel. Duo enables users to switch between sensors during flight, and has two live video output options: analog video over 10-pin mini-USB connector, or digital video over micro-HDMI.

XPONENTIAL 2017 booth number: 825

To Learn More:

Contact:FLIR Systems Inc.
Headquarters: Wilsonville, OR, USA
Product:
FLIR Duo infrared camera for drones
Key Features: Lepton thermal sensor (160 x 120 uncooled VOx microbolometer imager with a 7.5 to 13.5 µm spectral band), 1920 x 1080 visible color camera.

What FLIR says:
View more information on the FLIR Duo.
