VIS-SWIR camera from Raptor Photonics enables scientific imaging applications

Targeting high end scientific imaging and astronomy applications, the Ninox 1280 VIS-SWIR camera from Raptor Photonics offers a dynamic range of 69 dB, enabling it to capture bright and dark portions of a scene, according to the company.

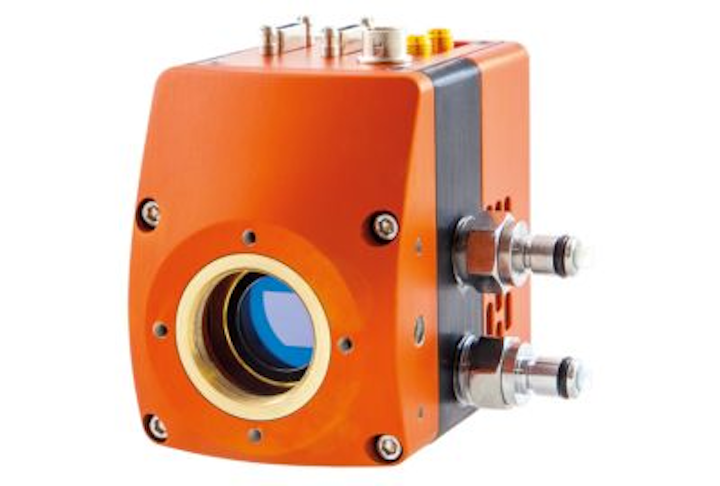

Content Dam Vsd En Articles 2018 02 Vis Swir Camera From Raptor Photonics Enables Scientific Imaging Applications Leftcolumn Article Headerimage File

Targeting high end scientific imagingand astronomy applications, the Ninox 1280 VIS-SWIR camera from Raptor Photonics offers a dynamic range of 69 dB, enabling it to capture bright and dark portions of a scene, according to the company. The camera features a 1280 x 1024 InGaAs sensor from SCD cooled to 5°F (–15°C) with a 10 µm pixel size and offers high-sensitivity imaging from 0.4 to 1.7 μm.

Available with a 12-bit Camera Link interface, the camera reaches a frame rate of up to 60 fps and offers features such as on-board automated gain control, an on-board intelligent three-point, non-uniform correction algorithm, and both TEC and water-cooling options. Additionally, the camera comes with a range of analysis software including XCAP and Micromanager and a standard Camera Link frame grabber from EPIX.

To Learn More:

Contact: Raptor Photonics
Headquarters: Larne, UK
Product: Ninox 1280 VIS-SWIR camera
Key Features: Cooled 1280 x 1024 InGaAs sensor, 10 µm pixel size, 60 fps maximum frame rate, spectral response of 0.4 to 1.7 µm.

What Raptor says:
View more information on the Ninox 1280 VIS-SWIR.
