Fixed focal length lenses from Edmund Optics target factory automation

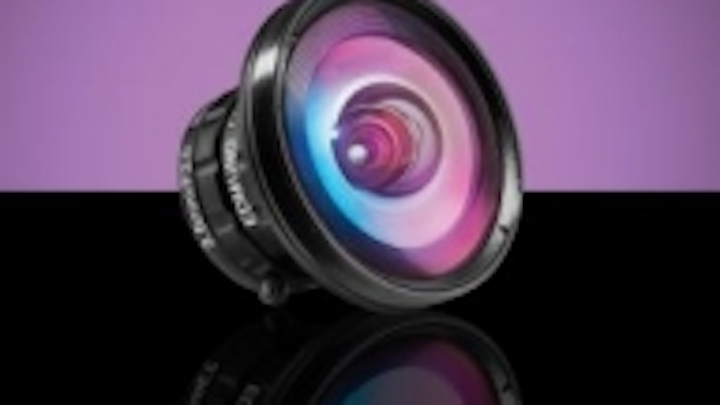

TECHSPEC 3.5mm compact fixed focal length lenses from Edmund Optics are specifically designed for machine vision and factory automation, including inspection or qualification applications.

Apr 10th, 2015
Content Dam Vsd En Articles 2015 04 Fixed Focal Length Lenses From Edmund Optics Target Factory Automation Leftcolumn Article Thumbnailimage File

TECHSPEC 3.5mm compact fixed focal length lenses from Edmund Optics are specifically designed for machine vision and factory automation, including inspection or qualification applications. The C-Mount lenses offer high-resolution performance on up to1/1.8" camera sensor formats and feature an angular field of 102.3°, a 425-675 nm broadband anti-reflection (BBAR) coating and an outer diameter of 50 mm. In addition, the lenses feature large maximum apertures for use in restrictive lighting conditions and support up to 2/3" sensors and include a ruggedized housing for durability. Furthermore, the BBAR coating increases transmission by up to 12% over standard MgF2 coatings on competitive lenses.

To Learn More:

Contact: Edmund Optics
Headquarters: Barrington, NJ, USA
Product: TECHSPEC fixed local length lenses
Key Features: 3.5 mm fixed focal length, 1/1.8” maximum camera sensor format, f/2 – f/11 aperture, BBAR coating, C-Mount lens mount.

What Edmund Optics says:

View more information on the TECHSPEC lenses.
