LED driver from Innovations in Optics features Ethernet control

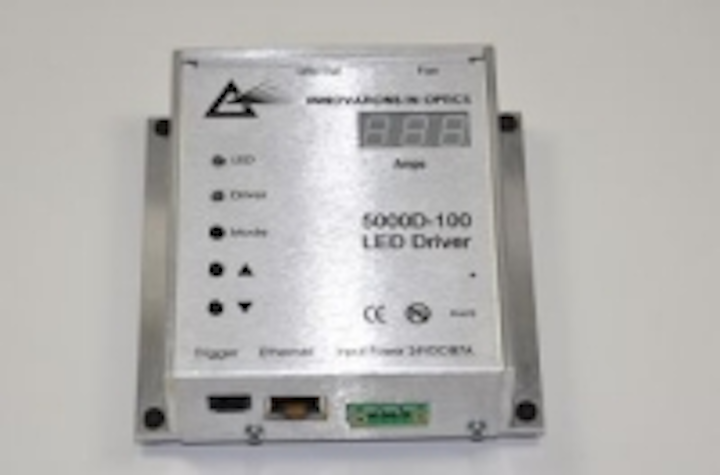

The Model 5000D-100 LED driver/controller from Innovations in Optics provides constant current in either continuous, pulsed or PWM modes.

Feb 9th, 2015
Content Dam Vsd En Articles 2015 02 Led Driver From Innovations In Optics Features Ethernet Control Leftcolumn Article Thumbnailimage File

The Model 5000D-100 LED driver/controller from Innovations in Optics provides constant current in either continuous, pulsed or PWM modes. An embedded system adds network control with 10/100Mbps Ethernet connectivity and is designed for both Aurora classic line source illuminators, as well as third-party LED illuminators, to be used as a constant current DC to DC driver/controller. Drive current in continuous mode is selectable from 200 to 2000 mA at 7.5 to 60VDC output, and output current setting is adjustable from 100% down to 10%, with duty cycle adjustment from 100% to 1% via the Ethernet interface for a 100:1 dimming range. In addition, both analog and digital remote controls are built-in. Additional features include temperature sensors for both the current driver and its hosted line source, cooling fan, a built-in three-digit display of the operating current setting and operating mode, and a DIN rail mounting clip.

To Learn More:

Contact:Innovations in Optics
Headquarters: Woburn, MA, USA
Product:
Model 5000D-100 LED driver
Key Features: Single channel, external trigger, 0.2 to 2 A DC output current, 7.5 to 60 VDC output voltage, continuous/pulsed/PWM modes, Ethernet controlled.

What Innovations in Optics says:

View more information on the Model 5000D-100.
