YellowScan LIDAR system is designed for UAV remote sensing applications

The YellowScan standalone LIDAR system was designed by L'Avion Jaune specifically for surveying solutions for UAVs and other small aircraft.

Content Dam Vsd En Articles 2015 09 Yellowscan Lidar System Is Designed For Uav Remote Sensing Applications Leftcolumn Article Thumbnailimage File

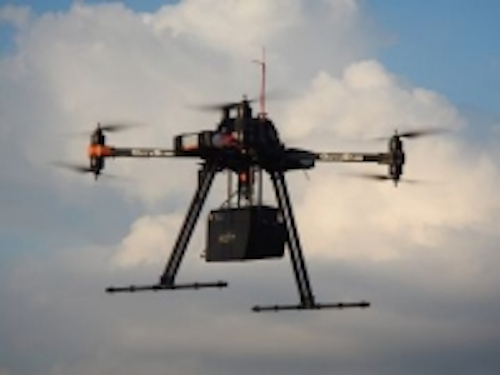

The YellowScan standalone LIDAR system (pictured above on a UAV) was designed by L'Avion Jaune specifically for surveying solutions for UAVs and other small aircraft. The system features a Class 1 laser with a 905 nm wavelength with a maximum range of 100 m and a range resolution of 4 cm. The scanner has a field of view of 100° and is able to capture 40,000 shots per second. YellowScan also comes with software to produce geo-referenced point clouds, which is aided by an integrated Ellipse-E miniature inertial navigation sensor from SBG SYSTEMS, which helps with obtaining a clear and accurate point cloud. Additionally, YellowScan features an on-board computer, integrated battery, connection to external GPS and odometer, IP68 enclosure, and a 200 Hz output rate.

To Learn More:

Contact:
L'Avion Jaune
Headquarters
: Montferrier sur Lez, France
Product:
YellowScan standalone LIDAR system
Key Features:
Class 1 laser with a 905 nm wavelength, maximum range of 100 m, range resolution of 4 cm, Ellipse-E miniature inertial navigation sensor, point cloud software.

What L'Avion Jaune says:
View more information on YellowScan.
