Active Silicon adds USB/HDMI camera interface board to Harrier product range

HD modes up to 1080p60 and simultaneous display on both video outputs are supported.

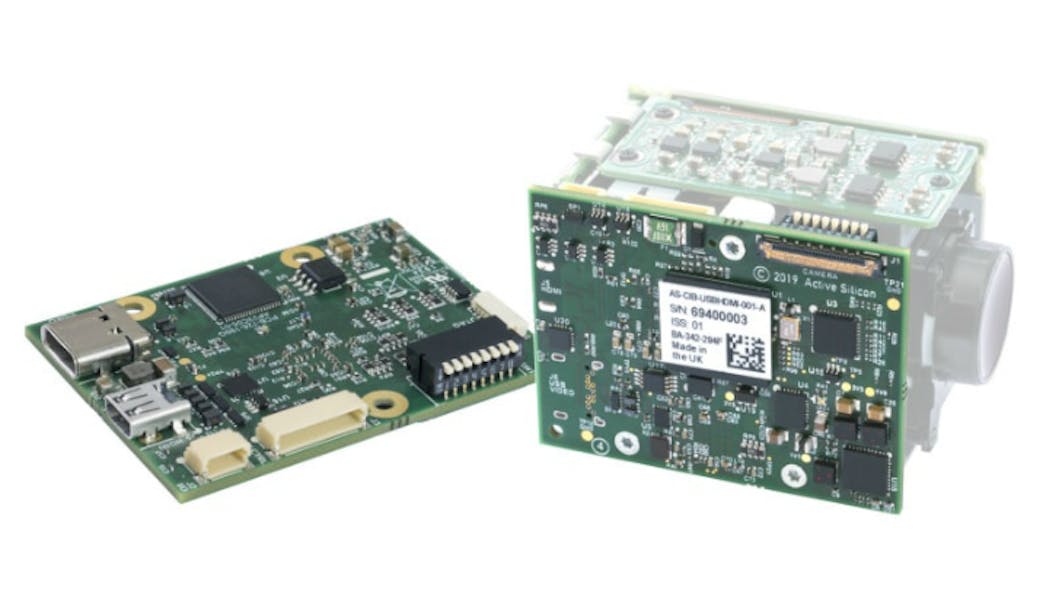

Active Silicon Harrier Usb Hdmi Camera Interface Board

The Harrier USB/HDMI Camera Interface Board from Active Silicon provides simultaneous USB video class v 1.1 and HDMI output and UVC/USB control input port for the Tamron MP1110M-VC and MP2030M-GS, and other autofocus zoom cameras like the Sony EV series.

When connected to a SuperSpeed USB 3.x host, USB video output is enabled by the new board and HDMI output is always enabled when an HDMI cable is connected. HD modes up to 1080p60 and simultaneous display on both video outputs are supported.

The video output mode can be selected by DIP switches or VISCA control, and remote camera control is provided via RS-232/RA-485/TLL comms port or USB 3.1 (UVC) port.

GET PRICING

To Learn More:

Contact: Active Silicon
Headquarters: Iver, UK
Product: Harrier USB/HDMI camera interface board
Key Features: Simultaneous USB video class v 1.1 and HDMI output, UVC/USB control input, HD modes up to 1080p60, remote camera control.

What Active Silicon says: View more information on the Harrier USB/HDMI camera interface board.
