Industrial PC supports AMD Ryzen systems-on-chip

Feb. 9, 2021
The ASB200-918 can run two simultaneous displays at Ultra HD 4K resolution.

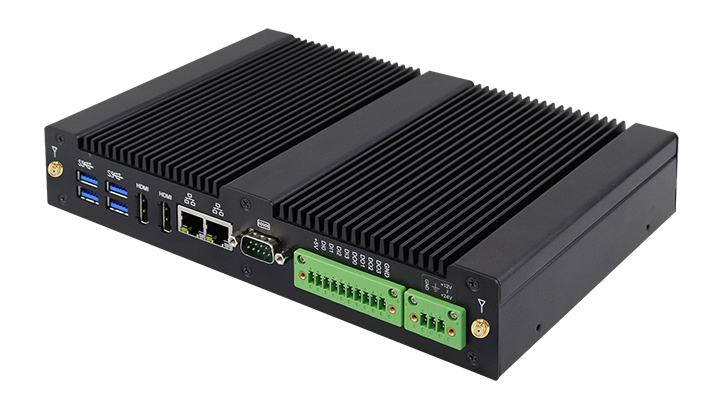

The ASB200-918 fanless industrial PC series is designed to support AMD Ryzen SoCs including the V1605B, V1202B, R1606G and R1505G, and can run two simultaneous HDMI 2.0a displays at Ultra HD 4K resolution (3840 x 2160) at 60 fps.

The PC measures 240 x 162 x 42 mm and is equipped with 16 GB of DDR4-2666 memory with ECC and support for up to 32 GB and 64GB TLC SSD storage. Ports include 4x COM, 4x USB 3.1, USB 2.0, 2x GbE, and an external GPIO. Two M.2 slots provide expansion space for NVMe storage and WiFi or Bluetooth connections. The operating temperature is 0 - 45° C.


To Learn More:

Contact: IBASE
Headquarters: Taipei, Taiwan
Product: ASB200-918  industrial PC
Key Features: 240 x 162 x 42 mm footprint, 16 GB of DDR4-2666 with support for up to 32 GB, support for V1605B, V1202B, R1606G and R1505G SoCs, eleven I/O ports.

What IBASE says:
View more information on the ASB200-918 industrial PC.
