System on module features neural network processor unit

Oct. 25, 2021
The SoM is designed with industrial, agricultural, and medical applications in mind.

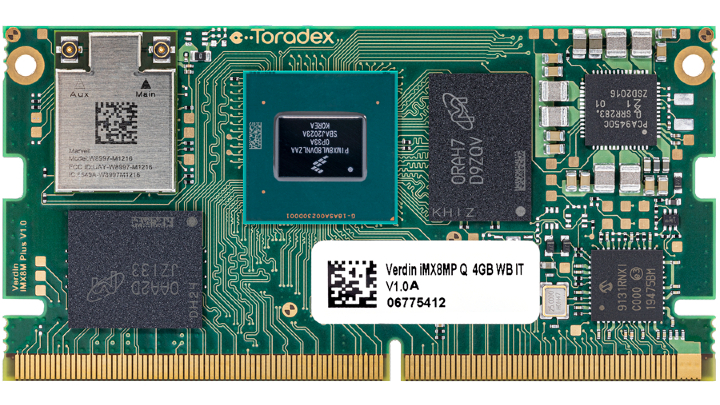

The Verdin SoM line features the NXP i.MX 8M Plus processor with 4x Cortex-A53 @1.8 GHz and a GPU that supports OpenGL ES 3.1, Vulkan, and OpenCL. An integrated Cortex-M7 microcontroller @800 Mhz can handle low latency and real-time task, with inline Error Correcting Memory to increase reliability.

A 2.8 TOPS neural network processor unit and an integrated image signal processor support vision and machine learning applications. The SoM is designed to be compatible with several models of Sony image sensors. Interfaces include HDML, LVDS, 2x MIPI CSI, dual ethernet with time-sensitive networking, 2x CAN-FD, PCIe Gen 3, USB 3.1, Wi-Fi, and Bluetooth.

To Learn More:

Contact: Toradex
Headquarters: Horw, Switzerland
Product: Toradex Verdin SoM with NXP i.MX 8M Plus
Key Features: NXP i.MX 8M Plus processor, 4x Cortex-A53 @1.8 GHz, Cortex-M7 microcontroller, 2.8 TOPS neural network processor unit, integrated image signal processor.

What Toradex says:
View more information on the Toradex Verdin SoM with NXP i.MX 8M Plus.
