OEM video cross-hair generator targets multiple applications

The XH300AS OEM video cross-hair generator from Invisual E. Inc. is capable of superimposing a video cursor image on an existing video stream in such applications as factory automation and medical imaging.

Mar 2nd, 2015
Content Dam Vsd En Articles 2015 03 Oem Video Cross Hair Generator Targets Multiple Applications Leftcolumn Article Headerimage File

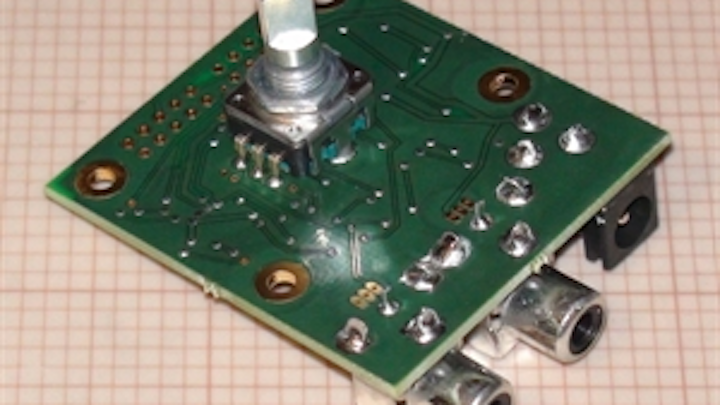

The XH300AS OEM video cross-hair generator from Invisual E. Inc. is capable of superimposing a video cursor image on an existing video stream in such applications as factory automation and medical imaging. Incoming video—in either NTSC or PAL format—is fed into a “Video in” connector and the resulting output provides a superimposed video cross-hair in five different types: single cross-hair, double cross-hair, single vertical line, single horizontal line, and circle. This provides users with a reference point on the video display. The reference point allows the user to gauge spatial distance and orientation relative to other objects in the video screen. The XH300AS feature RCA, BNC, and S-video video connectors, a 2.1 mm DIN power connector, and requires 8 to 15 V of power.

To Learn More:

Contact:
Invisual E. Inc.
Headquarters: Toronto, ON, Canada
Product:
XH300AS OEM video cross-hair generator
Key Features:
Five cursor types, rotary encoder with press switch, NTSC/PAL video standards supported, 8 to 15 V.

What Invisual E. Inc. says:
View more information on the XH300AS.
