Industrial computers from Logic Supply leverages Intel NUC platform
Logic Supply has introduced a new series of compact industrial PCs that combine the power of Intel’s Next Unit of Computing (NUC) mini computer platform with a ruggedized enclosure.

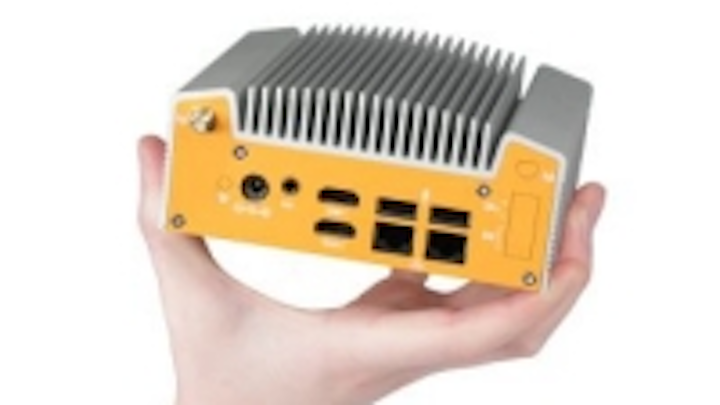

Logic Supply has introduced a new series of compact industrial PCs that combine the power of Intel’s Next Unit of Computing (NUC) mini computer platform with a ruggedized enclosure. The ML100 series will launch in two different models: The ML100G-10 and the ML100G-30. The ML100G-10 is powered by an Intel Quad Core Bay Trail Celeron N2930 processor, running at 1.83GHz (Turbo up to 2.16GHz). The system will support up to 8GB of DDR3L RAM and up to 1TB of mSATA solid state storage. Front I/O includes USB 2.0, USB 3.0, and an RS232/422/485 COM port. Rear I/O features the dual GigE ports, two USB 2.0, two HDMI, and an optional Terminal Block Power connector with remote switch.
The ML100G-30 features the new Intel Dual Core Broadwell i3 (2.1GHz) and i5 (2.3GHz, Turbo up to 2.9GHz) processors. Memory options include up to 16GB of DDR3L RAM while integrated M.2 support allows for up to 512GB of SSD storage. Two USB 3.0 ports, RS232/422/485 COM, and an audio port are available on the front panel, with GigE, two USB 3.0, two Mini DisplayPort standard on the rear of the system. Both models are suitable for use in machine vision or industrial control applications that require a small form factor computer with industrial connectivity.
To Learn More:
Contact: Logic Supply
Headquarters: Burlington, VT, USA
Product: M100 series of industrial computers
Key Features: Intel processors, multiple I/O options (including USB 2.0, USB 3.0, GigE, and more), ruggedized enclosure.
What Logic Supply says:
View more information on the M100 series.
