• Camera Link frame grabbers from BitFlow now shipping

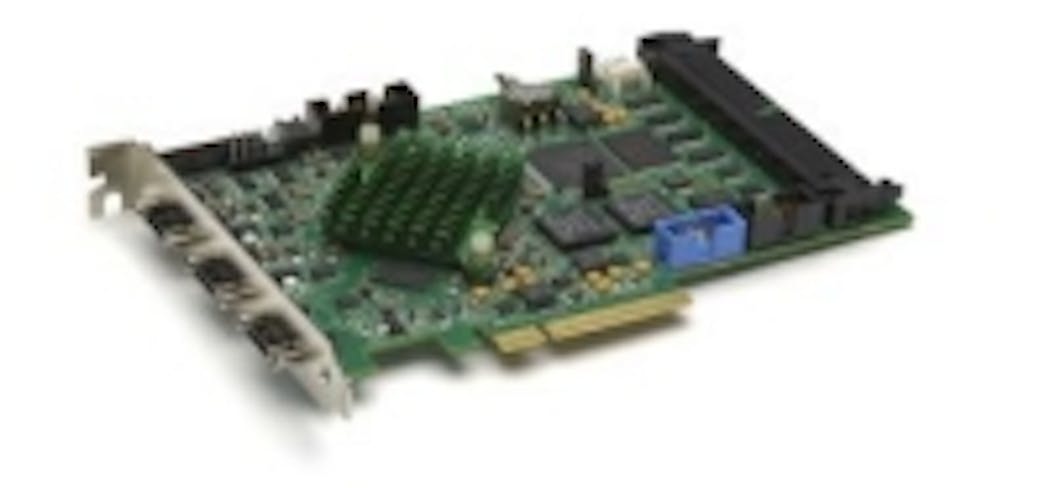

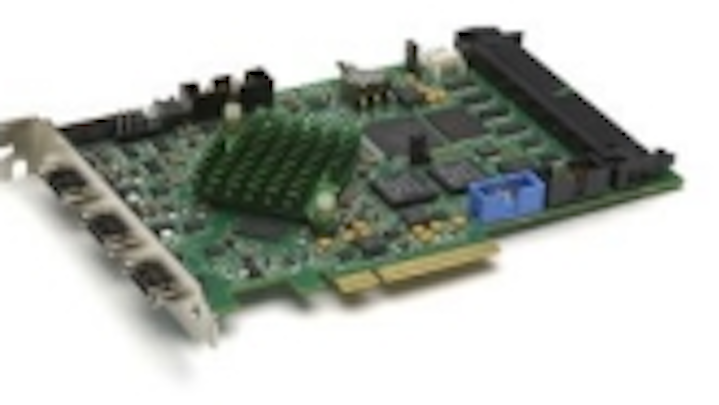

    Axion-CL, BitFlow’s sixth generation Camera Link frame grabbers, are built on the same half-size x8 PCI Express Gen 2.0 Board as the Cyton CXP CoaXPress frame grabber.
    Dec. 7, 2015
    2 min read

    Axion-CL, BitFlow’s sixth generation Camera Link frame grabbers, are built on the same half-size x8 PCI Express Gen 2.0 Board as the Cyton CXP CoaXPress frame grabber. The Camera Link 2.0-compliant Axion-CL supports up to two base, medium, full, or 10-tap cameras and CL clocks up to 85 MHz and can acquire from up to two 80-bit/85 MHz cameras simultaneously -- with the board appearing to Windows and application software to be two completely independent frame grabbers. Additionally, the the Axion-CL frame grabbers include the optimized DMA engine, StreamSync acquisition engine and buffer manager, along with its Timing Sequencer, I/O capabilities and Frame Sequence. Integration into a machine vision application is made easier with BitFlow’s software development kit, which supports both 32-bit and 64-bit operating systems.

    To Learn More:

    Contact:BitFlow

    Headquarters: Woburn, MA, USA
    Product:
    Axion-CL Camera Link frame grabbers
    Key Features: Half-Size x4 PCI Gen 2.0 Express Board, Camera Link 2.0 compliant, supports up to two base, medium, full, or 10-tap cameras.

    What BitFlow says:
    View more information on the Axion-CL.
