USB module provides optimized digital I/O for industrial automation and embedded applications

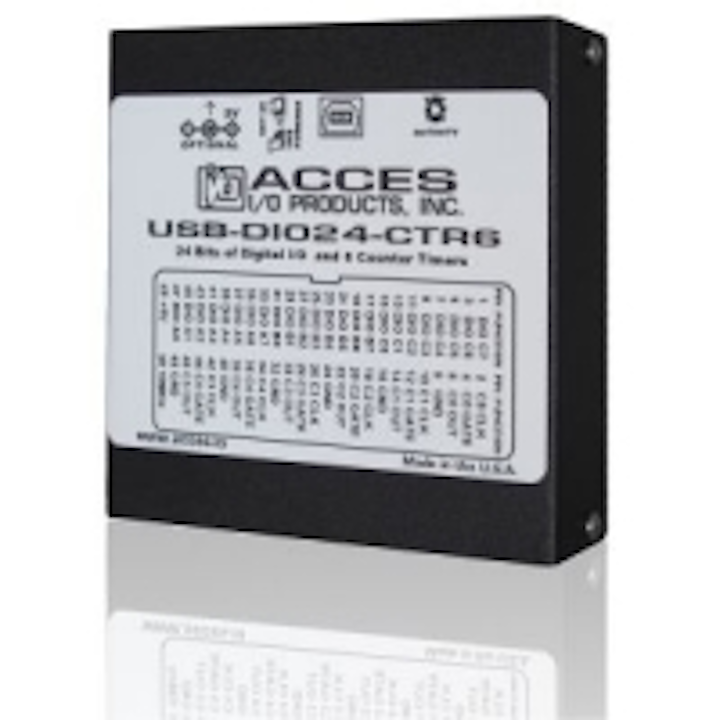

Featuring 24 lines of CMOS/LVTTL high-current digital I/O with two fully-undedicated 82C54's, the USB-DIO24-CTR6 from ACCES I/O is suitable for use in industrial automation, embedded OEM, and laboratory applications.

Content Dam Vsd En Articles 2015 07 Usb Module Provides Optimized Digital I O For Industrial Automation And Embedded Applications Leftcolumn Article Thumbnailimage File

Featuring 24 lines of CMOS/LVTTL high-current digital I/O with two fully-undedicated 82C54's, the USB-DIO24-CTR6 from ACCES I/O yields six 16-bit counter/timers and access to the input, gate, and output pins, all packaged in a small, rugged, industrial enclosure. The USB module is designed to add industrial strength I/O and counter capabilities to any PC or embedded system with a USB port and can be used in an assortment of USB-based embedded applications including industrial automation, embedded OEM, and laboratory applications. All I/O lines in the module are buffered with 32mA source / 64mA sink current capabilities and a micro-fit USB header connector is provided in parallel with the high retention type B connector and can be used for stacking and embedded OEM applications.

To Learn More:

Contact:ACCES I/O
Headquarters: San Diego, CA, USA
Product: USB-DIO24-CTR6 USB module
Key features: 24 lines of high-current TTL digital I/O and six 16-bit counter/timers, USB 2.0 device/USB 3.0 compatible, field selectable CMOS (+5V) or LVTTL (3.3V) VCCIO signal levels.

What ACCES I/O says:
View more information on the USB-DIO24-CTR6.
