PCIe frame grabber from Sensoray captures eight channels of video and audio simultaneously

The Model 812 PCI-Express (PCIe) eight-channel frame grabber from Sensoray includes eight asynchronous input channels.

Mar 26th, 2013
PCIe frame grabber from Sensoray captures eight channels of video and audio simultaneously
PCIe frame grabber from Sensoray captures eight channels of video and audio simultaneously

The Model 812 PCI-Express (PCIe) eight-channel frame grabber includes eight asynchronous input channels. Each video channel captures at full frame rate of 30 frames/sec or 25 frames/sec (NTSC or PAL, respectively), which results in an aggregate frame rate up to 240 frames/sec or 200 frames/sec (for NTSC or PAL, respectively). Eight channels of mono audio can also be captured. The PCIe x1 interface facilitates plug-and-play operation into any width of PCIe slot, and operating power is supplied from the bus without the need for an external power supply. A software developer's kit (SDK) includes drivers and programming samples for Windows and Linux operating systems.
Sensoray
Tigard, OR, USA


-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---

NEW PRODUCT PRESS RELEASE

Sensoray Introduces PCI-Express 8-Channel Frame Grabber

Simultaneous capture 8 channels of NTSC/PAL video and 8 channels of audio.

Tigard, OR -- Sensoray is proud to announce a new powerful frame grabber with eight asynchronous input channels and a high-speed PCI-Express x1 interface. With the
Model 812 PCI-Express 8-Channel Frame Grabber, each video channel captures at full frame rate of 30 fps (for NTSC) or 25 fps (for PAL), which results in an aggregate frame rate of up to 240 fps (for NTSC) or 200 fps (for PAL). Associatively, eight channels of mono audio can be captured as well.

The board implements a PCI-Express x1 interface that facilitates plug & play operation into any width of PCI-Express slots. All operating power is supplied from the PCI-Express bus and no external power supply is needed. It is a complete hardware solution for applications such as high performance image capture, multi-camera security applications, and for product inspection, etc.

Video/Audio

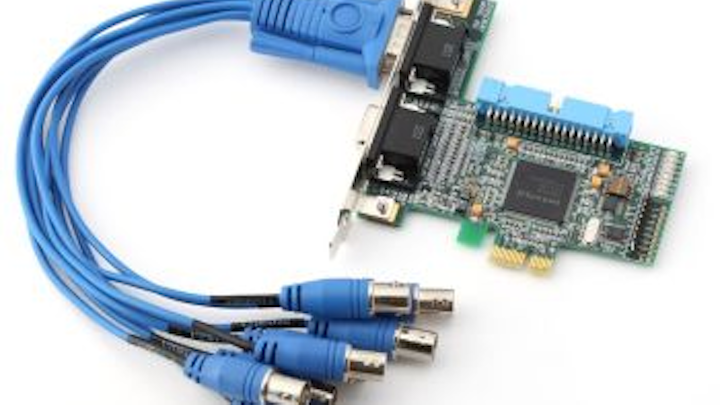

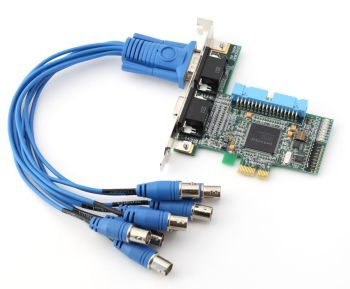

The captured video data can be streamed continuously to system memory or disk for either immediate local display or further processing. All 8 composite video inputs are connected through a DB15 connector, or through an optional DB15-to-BNC breakout cable. An additional 34-pin connector can be used for breaking-in the all composite video input signals. Video capture resolutions include D1, VGA, QVGA, CIF, 4CIF, SIF, and 4SIF. Captured frames can be in YUYV, YUV420, or RGB555/RGB565 formats. Similarly, DB15 connector and in-one 34-pin connector are provided for audio inputs. The audio sampling rate can be at 8K, 16K, 32K, 44.1K, or 48K Hz.

Sensoray provides an SDK for the Model 812 that includes drivers and programming samples for both Windows and Linux operating systems.

Pricing
OEM quantity 2-9 pricing for the Model 812 is $184. Volume discounts are also available. For more information go to www.sensoray.com/812

ABOUT Sensoray
Sensoray designs and manufactures OEM electronics for video imaging, data acquisition, and machine
control. Offering drivers for Windows or Linux, and live technical support, Sensoray is committed to
helping ensure easy and rapid development. For more information, or to speak to an engineer
regarding a custom design, visit www.sensoray.com, or email support@sensoray.com.

SOURCE: Sensoray
