ADLINK PCIe-7360 digital I/O module features data rate up to 100MHz

ADLINK’s PCIe-7360 digital I/O module supports up to 100 MHz data rate and 400 MByte/s throughput, and is suited for large scale and high resolution digital pattern data acquisition and generation applications.

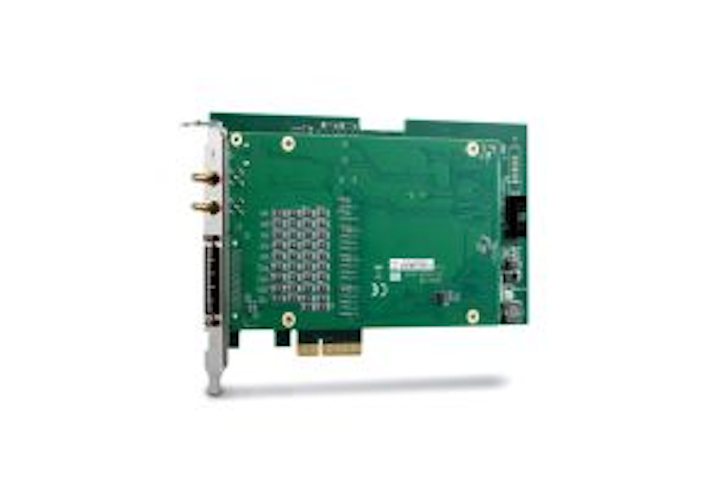

Content Dam Vsd Online Articles 2013 09 Adlink Copy

ADLINK’s PCIe-7360 digital I/O module supports up to 100 MHz data rate and 400 MByte/s throughput with parallel and bi-directional 32-channel high-speed I/O lines and 8-channel application function I/Os. It delivers support for CMOSimage sensor capture for image performance verification and features programmable parallel data width (8/16/24/32-bit). The PCIe-7360 supports Windows 8, Windows 7, and Windows XP and is fully compatible with third-party software such as LabVIEW and Visual Studio.NET. In addition, the module is suited for large scale and high resolution digital pattern data acquisition and generation applications.

To Learn More:

Contact:ADLINK Technology Inc.
Headquarters
: San Jose, Calif., United States
Product:
PCIe-7360 digital I/O module
Key Features:
8/16/24/32-CH at Max. 100MHz for DI or DO, 400Mbyte/s maximum throughput, 80-step phase shift in external clock mode, flexible handshake and external digital trigger modes.

What ADLINK says:
View more information on the PCI-e7360.
