PCI Express digitizer offers two input channels

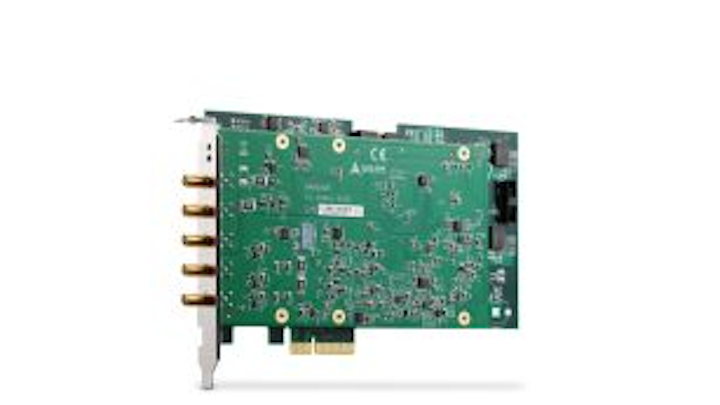

ADLINK’s PCI Express digitizer, the PCIe-9852, features two simultaneously sampled 200 MS/s input channels with 14-bit resolution, 90 MHz bandwidth, and up to 1 GB DDR3 onboard memory.

Content Dam Vsd Online Articles 2013 07 Pcie 9852 45 Rgb Copy

ADLINK’s PCI Express digitizer, the PCIe-9852, features two simultaneously sampled 200 MS/s input channels with 14-bit resolution, 90 MHz bandwidth, and up to 1 GB DDR3 onboard memory.

With its 800 MB/s data streaming and onboard signal-averaging technology, the PCIe-9852 is suited for use in data recording applications such as distributed temperature sensing, radar signal testing, and atmospheric science research. In addition, the PCIe-9852 provides a flexible set of input ranges, ±0.2V, ±2V, or ±10V; software selectable 50Ω or 1MΩ input impedance, and a number of triggering options and tight synchronization capability.

To Learn More:

Contact:ADLINK Technology Inc.
Headquarters
: San Jose, Calif., United States
Product:
PCIe-9852 PCI Express digitizer
Key Features:
Two input channels, 14-bit resolution, 90 MHz bandwidth, up to 1 GB DDR3 onboard memory, 800 MB/s data streaming.

What ADLINK says:

View more information on the PCIe-9852.
