Aqsense 3-D software enables volume measurements

Aqsense has updated SAL3D software with a new Area Tool module that automatically determines the volume of scanned objects at high speeds.

vsdprodaqsense052411
vsdprodaqsense052411

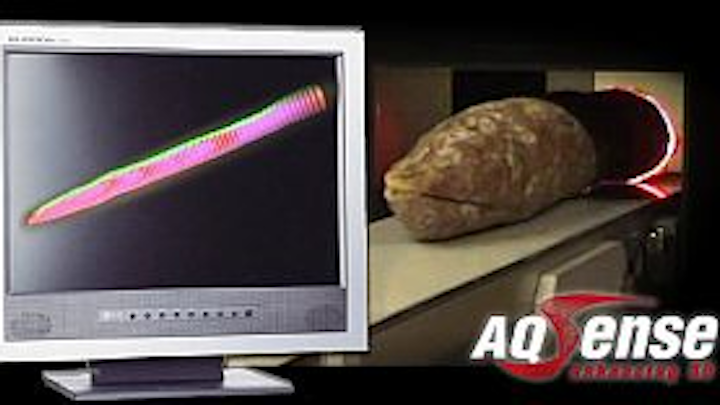

SAL3D’s new Area Tool module automatically determines the volume of scanned objects at high speeds, enabling complete inline measurements and is suited to food-processing tasks such as meat slicing, material density checks, and others. The 3-D vision software library offers two functional configurations: the measurement of an area with respect to a reference line and the measurement of closed-profile areas. The first configuration uses a single camera-laser system. The closed-profile configuration uses a multicamera-laser system and analyzes a complete outline. SAL3D is a development suite in C++ that supports 3-D data processing, including object scanning, 3-D surface generation without distortion, point-cloud comparisons, and 3-D analysis using external 2-D tools.
Aqsense
Girona, Spain

-- Posted byVision Systems Design

View More New Products

---

NEW PRODUCT PRESS RELEASE

3D software enables volume measurements

SAL3D´s new module, the Area Tool, automatically determines the volume of scanned
objects at high speeds, thus enabling complete in-line measurements.

AQSENSE´s flexible 3D vision software library offers two functional configurations: The
measurement of an area with respect to a reference line and the measurement of closed
profile areas. The first configuration makes use of a single camera-laser system and is
employed, e.g., in fish slicing applications. The closed profile configuration uses a multicamera-laser system and analyses the complete outline of whatever figure, allowing the
measurement of any object while, for example, changing from one conveyor belt to another.

The Area Tool has a wide range of applications in the food industry and has successfully
been used by AQSENSE in several projects like sausages slicing or material density
checking for the detection of inner bubbles.

About SAL3D
SAL3D is a development suite in C++ that allows creating applications for 3D-data processing. This includes object scanning, 3D-surfaces generation without distortion, cloud-of-points comparing and 3D analysis using external 2D tools.

About AQSENSE
AQSENSE develops and commercializes 3D point cloud acquisition and processing
libraries that allow high speed in-line 100% production inspection for the Machine Vision
Industry. AQSENSE’s customized applications and engineering solutions are supported with
training and seminars. Feasibility studies for 3D integration include the evaluation of
cameras, lasers and hardware configuration.
