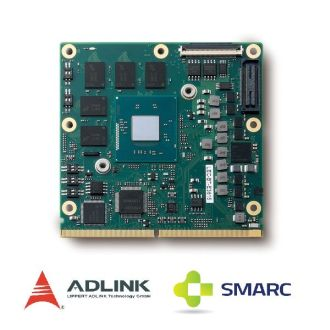

With just a 82 mm x 80 mm form factor, ADLINK’s LEC-BT Smart Mobility ARChitecture (SMARC) computer-on-module target portable or small stationary system with applications including industrial automation, medical imaging, and transportation. The LEC-BT runs on Intel x86 processors and uses a single, dual, or quad core Intel Atom processor E3800 series system-on-chip (SoC) from 1.3 to 2.2 GHz. Interface options include PCIe, SATA, HDMI, as well as GigE, USB 2.0, USB 3.0 (host and client), GPIO, and serial ports. An interface for a MIPI CSI-compliant camera is also included. In addition, the LEC-BT is certified by Intel for Intel Gateway Solutions for the Internet of Things (IoT) using Windriver and McAfee software integrations.
To Learn More:
Contact: ADLINK Technology, Inc.
Headquarters: San Jose, CA, USA
Product: LEC-BT SMARC COM module
Key Features:Single/dua/quad core Intel Atom processor E3800 series SoC, up to 4 GB DDR3L at 1066/1333 MHz (ECC), HDMI and LVDS, PCIe, SATA, HDMI, GigE, USB 2.0, USB 3.0, GPIO, and serial ports.
What ADLINK says:
View more information on the LEC-BT.
