Acromag XMC modules interface 10GbE to PCI Express

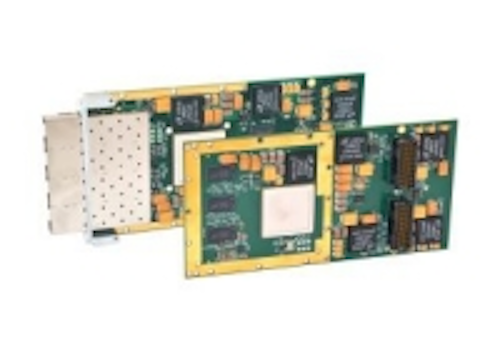

Acromag’s XMC-6260 and XMC-6280 mezzanine modules provide a 10-gigabit Ethernet (10GbE) interface solution for real-time embedded computing systems.

Content Dam Vsd En Articles 2014 01 Acromag Xmc Modules Interface 10gbe To Pci Express Leftcolumn Article Thumbnailimage File

Acromag’s XMC-6260 and XMC-6280 mezzanine modules provide a 10-gigabit Ethernet (10GbE) interface solution for real-time embedded computing systems. The modules use a TCP/IP offload engine connected to a PCI Express Gen2 x8 interface to perform image collection and transfer applications. XMC-6260 modules feature dual XAUI 10GBASE-KX4 ports and supports conduction-cooling or -40°F to 185°F (-40°C to 85°C) operation while the XMC-6280 features four SFP+ ports for fiber or copper cables. An 8-lane PCIe host interface provides a connection to the system processor, and with support for 5Gbps data rates, the PCIe interface delivers up to 32Gbps of bandwidth to the server.

To Learn More:

Contact: Acromag
Headquarters: Wixom, MI, USA
Product:
XMC-6260 and XMC-6280 modules
Key Features:TCP/IP offload engine, PCIe 2.0 x8 host interface, Dual XAUI ports (XM-6260), Quad SFP+ fiber/copper ports (XM-6280.)

What Acromag says:

View more information on the XMC-6260 and XMC-6280.
