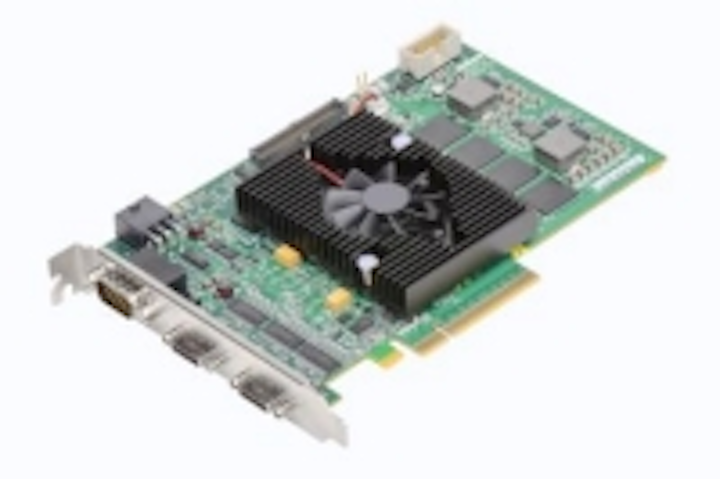

Matrox RadientPro CL is a half-length PCIe 2.0 x8 frame grabber card that acquires from all Camera Link 2.0 sources including the Full/80-bit configurations at up to 85 MHz. It also hosts an Altera Stratix V FPGA for image processing capabilities that can be configured using the new Matrox FDK. The FDK provides a component library and tools to facilitate the development of custom FPGA configurations for the Matrox RadientPro family of vision processor boards and is used in combination with Impulse CoDeveloper and Altera Quartus II to create FPGA configurations that offload and even accelerate image processing functions from the vision processor board’s host system. The RadientPro CL will be fully supported by Matrox Imaging Library (MIL) release 10 on 64-bit Windows 7/8.
To Learn More:
Contact: Matrox Imaging
Headquarters: Dorval, QC, Canada
Product: RadientPro CL vision processor
Key Features: PCIe 2.0 x8 frame grabber card plus an Altera Stratix V FPGA, captures images at highest CL rates, offload and accelerate image processing using FPGA.
