ADLINK Technology releases new system host board supporting 4th generation Intel Xeon

ADLINK Technology’s workstation grade PICMG 1.3 system host board, the NuPRO-E72, supports 4th generation Intel Xeon E3-1200 v3, 4th generation Intel Core i3, Intel Pentium, and Intel Celeron processors in a LGA1150 package with DDR3 1600 memory up to 16GB with ECC support.

Dec 17th, 2014
Content Dam Vsd En Articles 2014 12 Adlink Technology Releases New System Host Board Supporting 4th Generation Intel Xeon Leftcolumn Article Thumbnailimage File

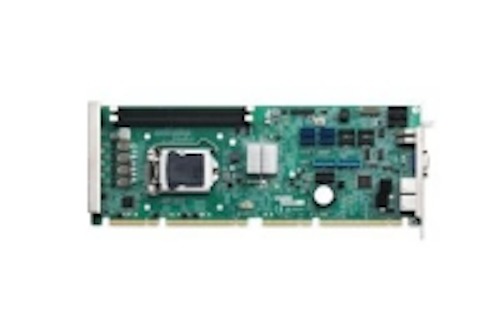

ADLINK Technology’s workstation grade PICMG 1.3 system host board, the NuPRO-E72, supports 4th generation Intel Xeon E3-1200 v3, 4th generation Intel Core i3, Intel Pentium, and Intel Celeron processors in a LGA1150 package with DDR3 1600 memory up to 16GB with ECC support. The board features multiple native PCIe Gen3 expansion from 1x PCIe x8, 2x PCIe x4 with Gen3 speed, a variety of expansion slots, 6 COM ports (5x RS-232, 1x RS-232/422/485 with auto flow control), 6 USB 3.0 ports, and 4 USB 2.0 ports. The system host board’s flexible multiple native PCIe slots and expandable slot capability make it suitable for use in industrial automation applications, such as AOI, PCB inspection, and SMT industries.

To Learn More:

Contact: ADLINK Technology, Inc.
Headquarters: San Jose, CA, USA
Product:
NuPRO-E72 system host board
Key Features: 4th Gen Intel Xeon E3-1200 v3, core i3, Pentium and Celeron processor, Intel C226 Express chipset supporting PCI Express 3.0, 6 COM ports, supports USB 3.0/Serial ATA.

What ADLINK says:
View more information on the NuPRO-E72.
