BitFlow introduces Frame Grabber for fastest Camera Link cameras

BitFlow has announced the release of the Karbon CL4-SP frame grabber, a special single-camera version of its Karbon-CL, designed to handle the latest 80-bit 85 MHz cameras, which are the fastest cameras supported by the Camera Link standard.

Content Dam Vsd En Articles 2014 04 Bitflow Introduces Single Camera Frame Grabber For Fastest Camera Link Cameras Leftcolumn Article Thumbnailimage File

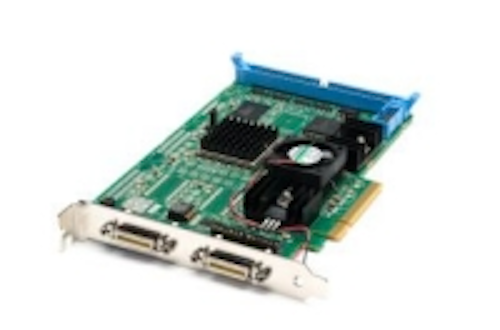

BitFlow has announced the release of the Karbon CL4-SP frame grabber, a special single-camera version of its Karbon-CL, designed to handle the latest 80-bit 85 MHz cameras, which are the fastest cameras supported by the Camera Link standard. The half-size x8 PCI Express board frame grabber supports images up to 256K x 128K and has no frame rate limit. In addition, the frame grabbers feature a configurable acquisition engine, DMA at burst rates up to 2.0 GB/s, and an onboard timing generator that supports high-resolution exposure control. Karbon CL4-SP frame grabbers are supported by the BitFlow SDK on 32 and 64-bit Windows and are suitable for use in machine vision, medical imaging, intelligent transportation systems, and quality control.

To Learn More:

Contact:
BitFlow
Headquarters
: Woburn, MA, USA
Product:
Karbon CL4-SP frame grabbers
Key Features: Half-size x8 PCI Express board frame grabber, designed to handle 80-bit 85 MHz cameras, supports images up to 256K x 128K, no frame rate limit.

What BitFlow says:
View more information on the frame grabbers.
