Advanced Micro Peripherals supplies frame grabber with comprehensive SDKs

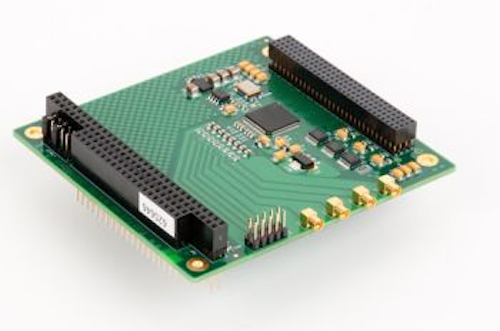

QuadGrabber from Advanced Micro Peripherals is a four-channel video capture and overlay controller on a single PC/104-Plus card, enabling capture of four simultaneous NTSC/RS-170, PAL/CCIR, or SECAM analog video inputs.

Sep 18th, 2012
Advanced Micro Peripherals supplies frame grabber with comprehensive SDKs
Advanced Micro Peripherals supplies frame grabber with comprehensive SDKs

QuadGrabber is a four-channel video capture and overlay controller on a single PC/104-Plus card, enabling capture of four simultaneous NTSC/RS-170, PAL/CCIR, or SECAM analog video inputs for local system display or software analysis and processing. The video-capture board allows each of the four video channels to be captured at full D1 size, all at full frame rate and then scaled, cropped and positioned under software control. It can also capture up to four mono audio sources. Captured video data can be streamed continuously to system memory. The frame grabber capture engine features hardware color space conversion to present the captured video data in the format best suited to the end application. The software development kits (SDKs) for video capture and windowing are designed to reduce development time in Windows, Linux, and QNX environments and include support libraries, drivers, and example applications.
Advanced Micro Peripherals
Cambridge, UK

-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---
NEW PRODUCT PRESS RELEASE

QuadGrabber - 4-Channel Video Capture and Overlay Controller for PC/104-Plus

The QuadGrabber is a 4-channel video capture and overlay controller on a single PC/104-Plus card providing a simple solution for capturing four concurrent analog video inputs for local system display or software analysis and processing. The QuadGrabber allows each of the 4 video channels to be captured at full D1 size, all at full frame rate and then scaled, cropped and positioned under software control. In addition to the video capture, the QuadGrabber also provides capture of up to 4 mono audio sources. The captured video data can be streamed continuously to system memory for immediate local display or further processing. The capture engine of the QuadGrabber features hardware color space conversion to present the captured video data in the format best suited to the end application.
Highlights

Supports 4 NTSC / RS-170, PAL / CCIR, SECAM analog video sources
4 x D1 size image capture at full frame rate
4 channel audio encoder
Arbitrary video window sizing, cropping and scaling
Windows DirectShow/DirectDraw support
Linux Video4Linux support
Low power PC/104-Plus form factor
PC/104-Plus 3.3v Add-in module
Operating temperature: 0°C to +60°C or -40°C to +85°C

Software Development Kits

The QuadGrabber is supported by comprehensive and well supported software development kits (SDKs) for video capture and windowing. The SDKs are designed to significantly reduce development time in Windows, Linux and QNX environments and include support libraries, drivers and example applications to help developers fully utilize the QuadGrabber features in complex frame grabber applications.

SOURCE: Advanced Micro Peripherals
