3D Time of Flight camera features IP67 design

Dec. 28, 2020

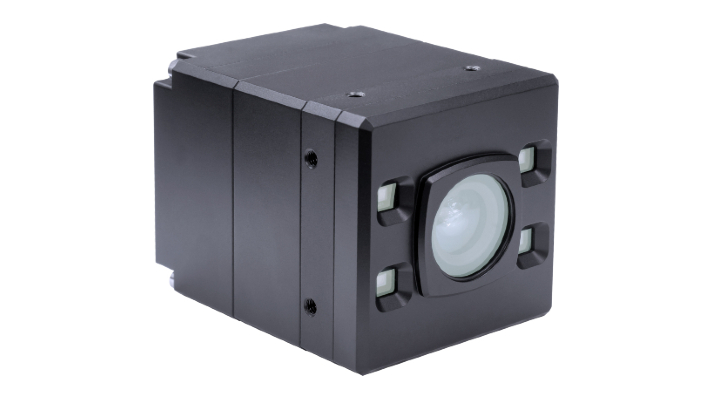

The Helios 2 3D Time of Flight camera features a back-illuminated image sensor.

Providing 3D depth data with <1 mm precision at 1 m, the Helios 2 3D Time of Flight (ToF) camera offers an IP67 design. The camera uses a Sony DepthSense IMX556PLR back-illuminated ToF image sensor and four 850 nm VCSEL laser diodes to deliver 640 x 480 depth resolution at up to an 8.3 m working distance at 30 fps. It also features six different operating distance modes, an integrated ambient light filter, multi-camera support, 69° x 51° FOV, a flying pixels filter, GigE Vision PoE and an industrial M 12 connector for up to a 100 m cable length.

The Arena SDK controls the system, while the ArenaView GUI shows the intensity and depth of a scene in either 2D or 3D point cloud view, which can be manipulated and oriented in real time.


To Learn More:

Contact: LUCID Vision Labs
Headquarters: Richmond, BC, Canada
Product: Helios 2 3D Time of Flight camera
Key Features: 1 mm precision at 1 m, IMX556PLR image sensor, 640 x 480 depth resolution, GigE Vision PoE.

What LUCID Vision Labs says: View more information on the Helios 2 3D Time of Flight camera.
