UAV Low-Light Navigation Camera Module

March 30, 2022
Featuring a 5-MPixel sensor and a MIPI interface, it weighs only 4.7 grams.

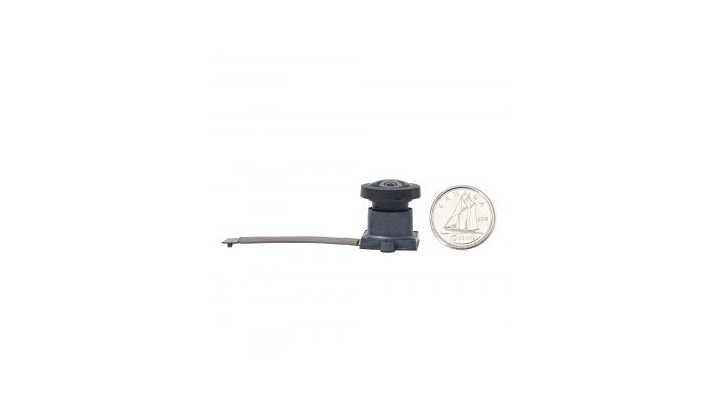

This UAV low-light navigation camera module is for autonomous and semi-autonomous navigation in all environments, with high performance in low-light conditions. The camera module includes the lens assembly, a 5-MPixel sensor, and a MIPI interface, weighing only 4.7 grams. Unlike a typical fisheye lens this camera module uses a panomorph lens combining an ultra wide-angle field of view (190° FOV) with a unique distortion profile and a large aperture (F#1.8). It is crafted to maximize the light sensitivity of pixels and optimize the image quality from edge to edge, for use by human operators and/or artificial intelligence (AI) and machine learning (ML) systems. Its IP67 rating and front lens element in glass allows for use in various environments, outdoors and indoors.

To Learn More:

Contact: Immervision
Headquarters: Montreal, Canada
Product: UAV Low-Light Navigation Camera Module
Key Features: 5-MPixel sensor; MIPI interface; 190° FOV.

What Immervision says:
View more information on the UAV Low-Light Navigation Camera Module.
