The recent increase in the use of machine vision has placed severe demands on the design of optical components. In addition, increases in sensor size and resolution have expanded the capabilities of machine-vision systems. The specifications of these sensors can often exceed the performance of standard optical components.

In designing and selecting optical components for machine-vision systems, factors to consider include working distance, field of view, cost, availability, and resolution. However, demands for higher resolution and speed are placing emphasis on a less-well-known aspect of optical components—the illumination profile. This illumination profile provides a map of the intensity of light across the entire field of view of the lens. In demanding applications, where light must be uniformly distributed, any deviation from a flat profile can have a significant effect on the system’s image quality.

Lenses that exhibit such deviations from a flat illumination profile can be corrected on the sensor itself or using the software supplied by the camera manufacturer (see Vision Systems Design, July 2006, p. 17). This process, called flat-field correction, uses an image of an evenly illuminated uniform object to determine the lens illumination profile, which becomes a reference to change the profile of individual pixels for each subsequent image. While this is a good solution for some applications, any subsequent adjustments to the aperture setting (F#) need to be compensated. Also, since this process adjusts system gain, it introduces potentially unwanted noise.

While flat-field correction can be used in many cameras systems, it can be more effective to overcome the profile problem optically. In many cases a lens design that corrects the issue provides better image quality across the entire image.

Numerous factors contribute to the illumination profile specification of a lens, including the sensor size, vignetting, rolloff, and F#. Understanding each one helps designers make the best decision when selecting a camera and lens for a particular application.

Sensors and vignetting

The ability of a lens to support certain sensor sizes is specified as its maximum format. If the imager is too large for the lens, the resulting image may appear to fade and degrade or even cut off toward the edges due to vignetting (see Fig. 1). This is an effect caused by the extinction of rays passing through the outer edges of the lens and illumination rolloff.

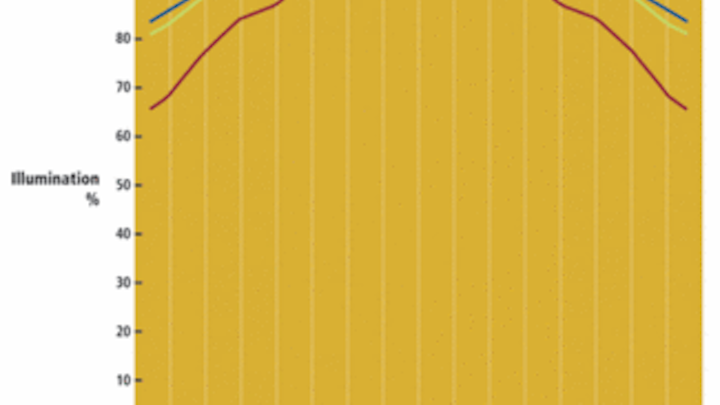

FIGURE 1. In this illumination profile for a 75-mm lens across a range of positions on an imager, the 0.0 position represents the center of the imager. The positions –3.0 to 3.0 (6.0-mm diagonal) cover the corner-to-corner range on a 1/3-in. imager; –4.0 to 4.0 represents a 1/2- in. imager; –5.5 to 5.5 represents a 2/3-in. sensor. The color plots indicate the relative illumination intensity at the different F# settings. The plots show an almost 20% drop in relative illumination intensity at the corner of a 2/3-in. sensor at an aperture setting of f/4 (purple). Dropoff in relative aperture is also plotted for f/5.6 (green) and f/8 (blue). The effects seen at the extremes, or corner, of a 2/3-in. imager occur at –5.5 and 5.5 mm. For a 1/2-in. imager, these positions would be at –4.0 and 4.0 mm.
Click here to enlarge image

Although smaller imagers generally do not suffer from these problems, vignetting is still lens-dependent. In some applications outside of machine vision, compensation for vignetting is not critical. However, this effect in machine-vision systems can pose significant problems when parts need to be uniformly lit and corresponding uniform images captured.

Imaging of fine details is generally more difficult to reproduce at the edge of the image than at the center. This is because the rays that create the image at the edge are harder to control than those in the center. One way to manage this is to eliminate them from the system. Vignetting can remove the rays that are hardest to correct, thus making details at the edge of the image more defined (see Fig. 2).

FIGURE 2a. Rays from a simple lens with an f/2 aperture focused on the camera sensor at the center (blue rays) and the edge (green rays). Dispersion in the green rays in relation to the blue rays creates a less focused image (with a larger spot size) at the edge than in the center since the information is scattered over a large area. FIGURE 2b. Placing an aperture in the back clips edge rays and results in less dispersion resulting in less scattered information, a smaller spot size, and a crisper image at the expense of reducing the amount of illumination arriving at the edge of the sensor. FIGURE 2c. By using a lens with an f/4 aperture, none of the rays are clipped since the rays are more controlled. A crisp, uniformly lit image would be seen in this scenario.
Click here to enlarge image

Adverse effects from manufacturing tolerances are also reflected in all areas of the image but become more pronounced at the edges. The looser the tolerances, the more adverse the effects can become; the tighter the tolerance, the higher the costs. Often a balance must be struck between reducing manufacturing cost and maintaining image quality, but because cost often becomes the main driver, vignetting must be used to maintain resolution across the field of view. This has an adverse effect on the illumination profile.

FIGURE 3. Tighter manufacturing tolerances on lens performance at apertures of f/4 (purple), f/5.6 (green), and f/8 (blue) show the capabilities of a 75-mm lens with the same working distance, field of view, size, and relative aperture range as the lens described in Fig. 1, but with a 10% higher cost. This lens has a superior illumination profile at all aperture settings and imager sizes resulting from tighter optical tolerances, eliminating the need to vignette the image.
Click here to enlarge image

Conversely, lenses that have tighter tolerances generally yield a better overall image across the entire field of view. Another benefit of tighter tolerances is that repeatability from lens to lens is better, since there is far less variation unit to unit due to tolerances. Simply put, tighter tolerances produce better image quality and better illumination profiles. An added bonus of tighter tolerances is that larger sensors formats can be covered since higher image quality can be maintained further from the center of the field of view (see Fig. 3).

F# and rolloff

F#, the ratio of the focal length of an optical system to its clear aperture, also has a direct impact on the amount of vignetting in a lens. Minor vignetting effects can occur at F# settings lower than f/2.8. In addition, vignetting will generally increase as F# drops, for example, there will be more vignetting at f/1.4 than at f/2.8. Even the best lenses have difficulty not having larger amounts of vignetting in lenses with focal lengths of 16 mm and shorter than with apertures of f/2.0 and larger.

Rolloff is the relative difference between the amount of light reaching the image center and edges without vignetting. It is determined by calculating cos4, the angle between the chief ray at the center of the image and a ray at the edge of the image (see Fig. 4).

FIGURE 4. Chief rays (red) establish image high (position on the image) of a given position of the object under inspection. The illumination of a given point relative to the illumination at the image center is calculated from the cos4 of the angle between the chief ray at the image center and a ray at any other position.
Click here to enlarge image

In many applications, rolloff is not an issue, but it can be problematic when increases. Increasing the angle between the chief ray and the ray at the edge of the image reduces the relative luminance at the edges of the image (see table).

Click here to enlarge image

This is especially true in linescan applications, where systems can be light starved due to short exposure times of the image sensor. Rolloff must also be considered in applications with short working distances and large fields of view. This can produce large values, regardless of sensor size.

One way to correct for rolloff is to design the lens to be image space telecentric, which eliminates and produces even illumination. Another way to offset rolloff is to create unbalanced illumination on the object under inspection. By mounting additional lights closer to the edges of the object under inspection or by adding neutral-density filters in front of the light source, rolloff can be reduced.

While appearing to be a minor issue, illumination profile can have a dramatic impact on the performance of a machine-vision system. Lenses with better illumination profiles generally provide better image quality and resolution.

Greg Hollows is director, machine vision solutions, Edmund Optics, Barrington, NJ, USA;
