High-speed cameras target laboratory applications

Aug. 12, 2015

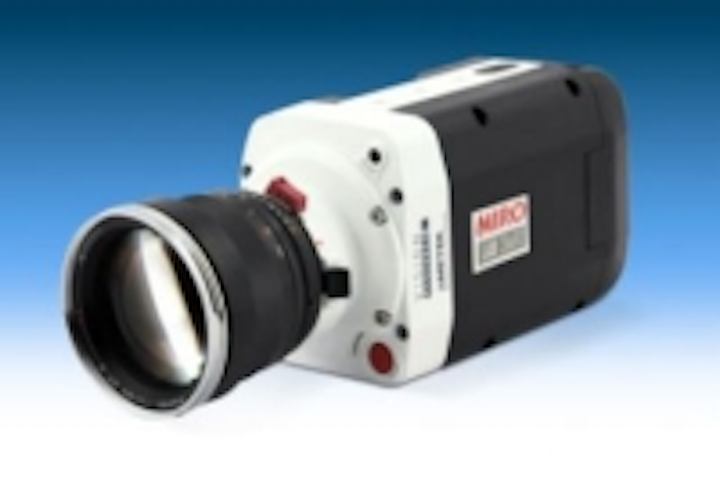

Designed specifically for laboratory environments, the Miro LAB-Series of high-speed cameras from Vision Research are available in seven different models witH CMOS image sensors ranging from 1 MPixel to 4 MPixel.

Designed specifically forlaboratory environments, the Miro LAB-Series of high-speed cameras from Vision Research are available in seven different models, enabling users to choose a camera that best meets their particular needs for image resolution and acquisition speed. Models include:

  • LAB110: 1 MPixel CMOS image sensor, 20 µm pixel size, 1600 fps at full resolution, 1.6 Gpx/s throughput.
  • LAB 310:1 MPixel CMOS image sensor, 20 µm pixel size, 3200 fps at full resolution, 3.2 Gpx/s throughput.
  • LAB 3a10:1.6 MPixel CMOS image sensor, 10 µm pixel size, 1850 fps at full resolution, 3.2 Gpx/s throughput.
  • LAB 120:2.3 MPixel CMOS image sensor, 10 µm pixel size, 730 fps at full resolution, 1.6 Gpx/s throughput.
  • LAB 320:2.3 MPixel CMOS image sensor, 10 µm pixel size, 1380 fps at full resolution, 3.2 Gpx/s throughput.
  • LAB 140:4 MPixel CMOS image sensor, 10 µm pixel size, 410 fps at full resolution, 1.6 Gpx/s throughput.
  • LAB 340:4 MPixel CMOS image sensor, 10 µm pixel size, 800 fps at full resolution, 3.2 Gpx/s throughput.

LAB-Series cameras have a standard RJ-45 Ethernet connector and standard BNC connections for signaling. Direct connection to a computer in a lab environment enables users to easily save, view and analyze their high-speed cines.

To Learn More:

Contact:Vision Research
Headquarters
: Wayne, NJ, USA
Product:
Miro LAB-Series cameras
Key Features:
CMOS image sensors ranging from 1 MPixel to 4 MPixel, frame rates from 410 fps to 3200 fps at full resolution.

What Vision Research says:
View more information on the Miro LAB-Series.
