Telecentric lens from Computar is designed for 5 MPixel cameras

Aug. 11, 2015

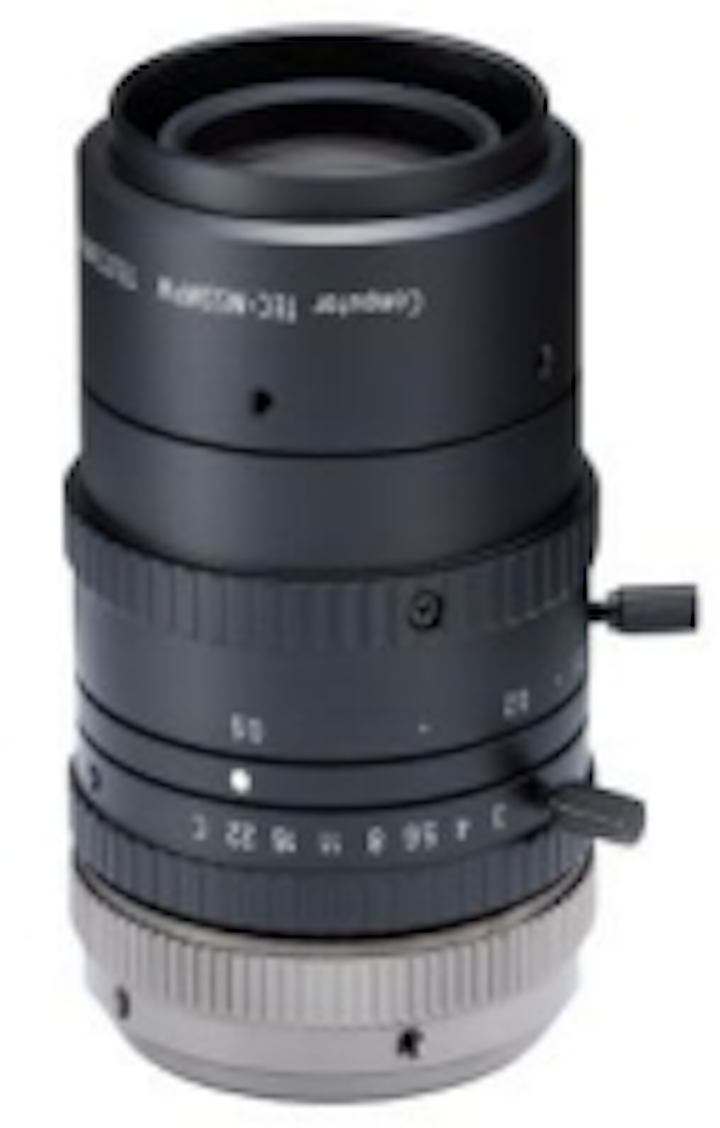

Computar's TEC-M55MPW telecentric lens has a 55 mm focal length and is designed to primarily be used in 2/3” 5 MPixel machine vision cameras.

With a 55 mm focal length, the TEC-M55MPWtelecentric lens from Computar has an optical magnification of 0.057x - 0.5x with less than 1% distortion and has a relative illuminance of more than 80%. The C-Mount lens yield constant magnification over a range of working distances, eliminating viewing angle error, and is suitable for use in machine vision applications requiring accurate measurement of 3D objects with slight height variations. The TEC-M55MPW lens is designed to primarily be used in 2/3” 5 MPixel machine vision cameras and also features a manual iris and a compact body design.

To Learn More:

Contact:ComputarOptics Group
Headquarters
: Commack, NY, USA
Product:
TEC-M55MPW telecentric lens
Key Features:
Designed for2/3” 5 MPixel machine vision cameras, 55 mm focal length, optical magnification of 0.057x - 0.5x.

What Computar says:.
View more information on the TEC-M55MPW.
