Camera Link HS line scan camera and frame grabbers introduced by Teledyne DALSA

Teledyne DALSA has announced the availability of its Camera Link HS-compatible 16k Piranha XL CMOS TDI line scan camera and Xtium CLHS frame grabbers.

Aug 27th, 2015
Content Dam Vsd En Articles 2015 08 Camera Link Hs Line Scan Camera And Frame Grabbers Introduced By Teledyne Dalsa Leftcolumn Article Thumbnailimage File

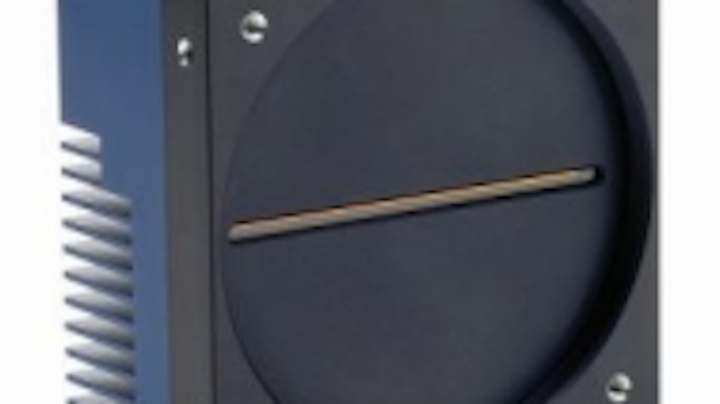

Teledyne DALSA has announced the availability of its Camera Link HS-compatible 16kPiranha XL CMOS TDI line scan camera and Xtium CLHS frame grabbers. The Piranha XL camera features a 16352 x 12 CMOS line scan image sensor with a 5 µm pixel size and a maximum line rate of 125 kHz. With a single CX4 cable, the camera can deliver up to 2 GByte/sec data throughput. The Xtium-CLHS PX4 and PX8 are PCIe Gen 2 frame grabbers feature up to 7 data lanes to capture aggregate data rates of 2.1 GB/s and sustained host transfer bandwidth of over 3.2GB/s (using Xtium-CLHS PX8). Fully supported by Sapera LT software, the Camera Link HS frame grabbers feature multi-board synchronization and built-in capability to re-distribute incoming images at maximum camera speeds to as many as six additional frame grabbers enabling distributed image processing across multiple computers.

To Learn More:

Contact:Teledyne DALSA
Headquarters:Waterloo, ON, Canada
Product: 16k Piranha XL TDI line scan camera, Xtium CLHS frame grabbers
Key Features: 16352 x 12 CMOS line scan image sensor with a 5 µm pixel size and a maximum line rate of 125 kHz (Camera), up to 7 data lanes to capture aggregate data rates of 2.1 GB/s (frame grabbers).

What Teledyne DALSA says:
View more information on the Piranha XL camera.
View more information on the Xtium PX4 and PX8 CLHS frame grabbers.
