USB3 and CoaXPress versions of JAI 20 MPixel camera now available

Jan. 27, 2015

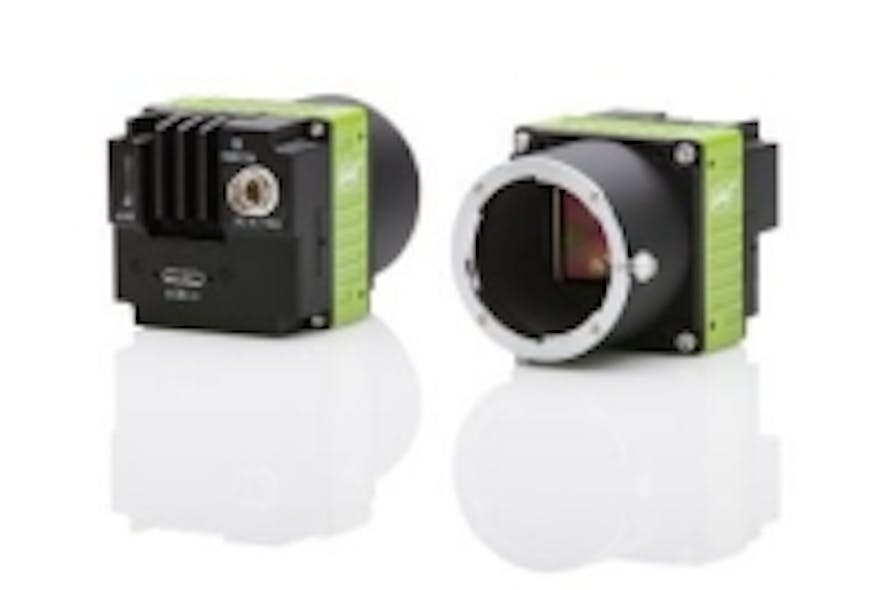

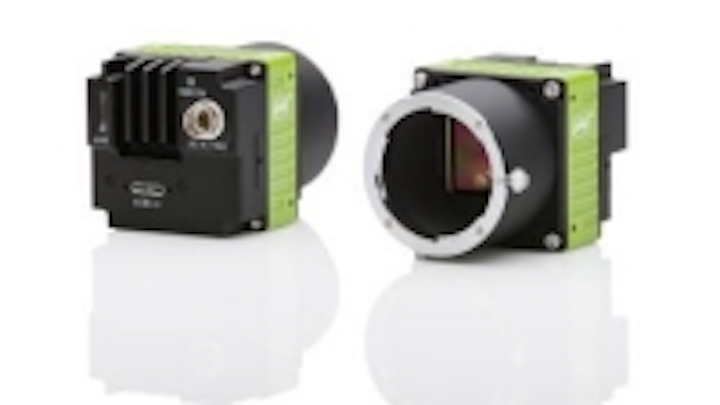

JAI has added USB 3.0 and CoaXPress interface models to its 20 MPixel Spark SP-20000 series of cameras.

JAI has added USB 3.0 and CoaXPress interface models to its 20 MPixel Spark SP-20000 series of cameras. The SP-20000M-CXP2 (monochrome) and SP-20000C-CXP2 (color) CoaXPress cameras feature 8/10-bit CoaXPress output and accept power over CoaXPress or via 12-pin connector. The SP-20000M-USB (mono) and SP-20000C-USB (color) cameras feature 8/10-bit USB3 Vision output and accept power via 12-pin connector. All of the new models feature a 20 MPixel CMV20000 CMOS imager from CMOSIS that has a 6.4 µm pixel size, with the CoaXPress models reaching 30 fps at full resolution and the USB3 models reaching 16 fps at full resolution. In addition, the cameras feature in-camera CMOS pattern correction, flat field and pixel blemish correction, and automatic level control for dynamic lighting conditions.

To Learn More:

Headquarters: San Jose, CA, USA
Product:USB3/GigE SP-5000 cameras
Key Features: 20 MPixel CMOSIS CMOS image sensors, 6.4 µm pixel size, 16 fps (USB), 30 fps (CoaXPress), in-camera pattern correction algorithms.

What JAI says:
View more information on the USB3 SP-20000 cameras.
View more information on the CoaXPress SP-20000 cameras
