Rugged daylight camera from Adimec features Sony IMX 174 sensor

Adimec's new TMX74 industrial caemra features the Sony IMX174 CMOS image sensor and is the first camera in the new extended daylight rugged full-HD and beyond HD camera portfolio of TMX cameras.

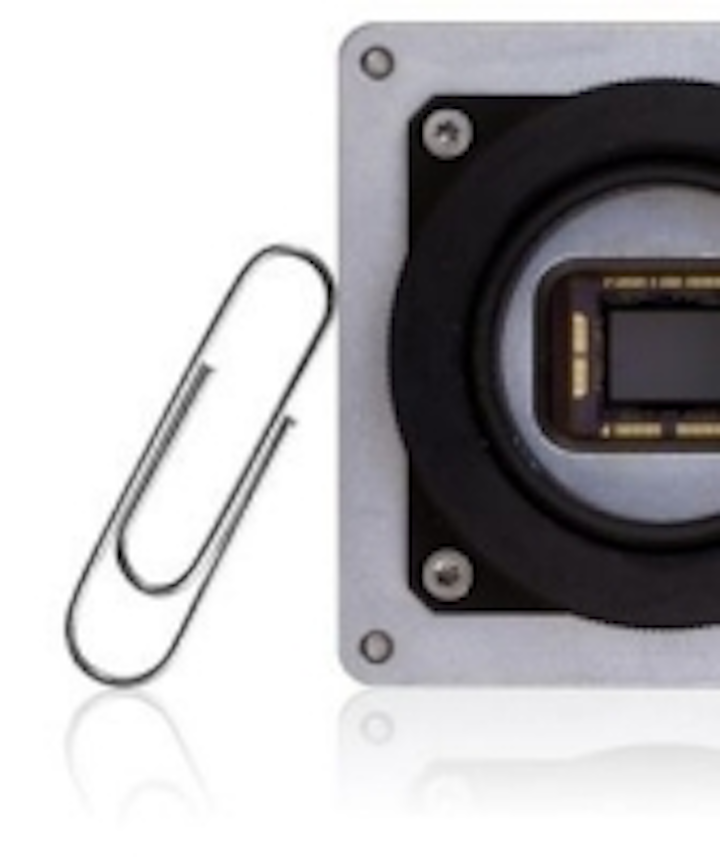

Content Dam Vsd En Articles 2015 09 Rugged Daylight Camera From Adimec Features Sony Imx 174 Sensor Leftcolumn Article Thumbnailimage File

Featuring the Sony IMX174 CMOS image sensor, the TMX74 from Adimec is the first camera in the new extended daylight rugged full-HD and beyond HD camera portfolio of TMX cameras. The IMX174 sensor is a global shutter CMOS image sensor with a 5.86 µm pixel size that can achieve frame rates up to 60 fps. The camera, which is available in color and mono, also features a dynamic range of 74 dB, a Camera Link interface, a rugged design, and image enhancement functions such as contrast enhancement which eliminates the effects of a hazy atmosphere due to a fog and/or sunlight scattering, as well as automatic exposure control, automatic gain control, automatic white balance, and defective pixel correction.

To Learn More:

Contact: Adimec Advanced Imaging Systems
Headquarters
: Eindhoven, The Netherlands
Product:
TMX74 camera
Key Features: 2.3 MPixel global shutter Sony IMX174 CMOS sensor, 5.86 µm pixel size, 60 fps, 74 dB dynamic range, Camera Link interface.

What Adimec says:
View more information on the TMX74.
