Industrial cameras from JAI feature 12 MPixel CMOS image sensor

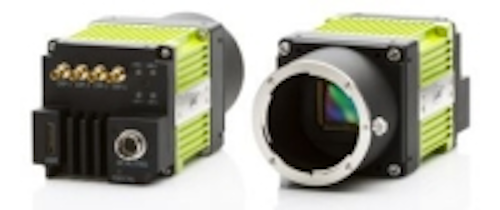

Expanding on its Spark series of industrial cameras, JAI has introduced the Spark SP-12000C-CXP4 (color) and Spark SP-12000M-CXP4 (monochrome) cameras.

Content Dam Vsd En Articles 2015 12 Industrial Cameras From Jai Feature 12 Mpixel Cmos Image Sensor Leftcolumn Article Thumbnailimage File

Expanding on its Spark series ofindustrial cameras, JAI has introduced the Spark SP-12000C-CXP4 (color) and Spark SP-12000M-CXP4 (monochrome) cameras. Both cameras feature the CMV12000 global shutter 12 MPixel CMOS image sensor from CMOSIS, which features a 5.5 µm pixel size and can achieve a frame rate of up to 189 fps in full 12 MPixel resolution through a CoaXPress 4-connector interface. Additionally, the cameras feature automatic level control for dynamic lighting conditions, an HDR function providing up to 90 dB dynamic range (monochrome only), 1x2, 2x1, and 2x2 binning (monochrome only), sequence trigger, and a unique multi-ROI function.

To Learn More:

Contact:
JAI
Headquarters: San Jose, CA, USA
Product:SP-12000 industrial cameras
Key Features: CMV12000 global shutter 12 MPixel CMOS image sensor from CMOSIS, 5.5 µm pixel size, frame rates of up to 189 fps, CoaXPress 4-connector interface.

What JAI says:
View more information on the SP-12000 cameras.
