PYTHON CMOS image sensor line expanded by ON Semiconductor

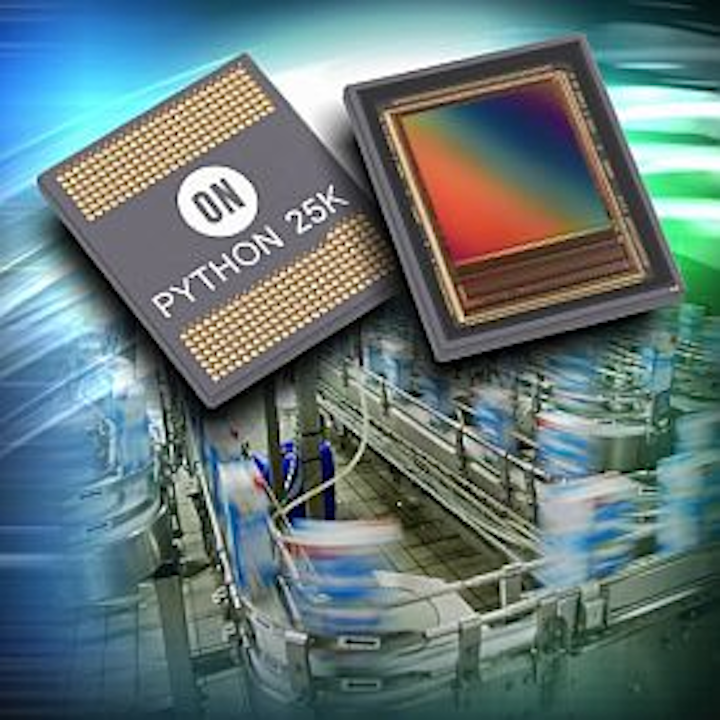

PYTHON CMOS image sensors from ON Semiconductor are now available in 11.1 (PYTHON 10K), 12.5 (PYTHON 12K), 16.8 (PYTHON 16K), and 26.2 MPixel (PYTHON 25K) models.

Content Dam Vsd En Articles 2015 10 Python Cmos Image Sensor Line Expanded By On Semiconductor Leftcolumn Article Headerimage File

PYTHONCMOS image sensors from ON Semiconductor are now available in 11.1 (PYTHON 10K), 12.5 (PYTHON 12K), 16.8 (PYTHON 16K), and 26.2 MPixel (PYTHON 25K) models. The sensors feature a 4.5 µm pixel size that leverages ON Semiconductor’s patented in-pixel CDS (ipCDS) technology to enable global shutter imaging with Correlated Double Sampling (CDS) in a compact pixel size. Image data is accessed through 32, 16, 8, or 4 LVDS channels, each running at 720 MHz, to enable readout speeds of up to 80 fps for the 25K device. Additionally, the sensors are packaged in a µPGA-355 package and are available in monochrome, Bayer color, and extended near-infrared (NIR) configurations. PYTHON CMOS sensors target industrial imaging applications such as machine vision, inspection and motion monitoring, security and surveillance, and intelligent transportation systems.

To Learn More:

Contact:ON Semiconductor
Headquarters: Phoenix, AZ, USA
Product: PYTHON CMOS image sensors
Key Features: 11.1, 12.5, 16.8, and 26.2 MPixel sensors, 4.5 µm pixel size, packaged in a µPGA-355 package and are available in monochrome, Bayer color, and extended NIR configurations.

What ON Semiconductor says:
View more information on the PYTHON CMOS image sensors: 10K, 12K, 16K, and 25K.
