Teledyne DALSA introduces next generation smart cameras

Learn about the brand new smart cameras from Teledyne DALSA, the BOA2 smart cameras, which feature higher-resolution imaging, dual-core processing, and embedded iNspect Express application software.

Content Dam Vsd En Articles 2015 05 Teledyne Dalsa Introduces Next Generation Smart Cameras Leftcolumn Article Thumbnailimage File

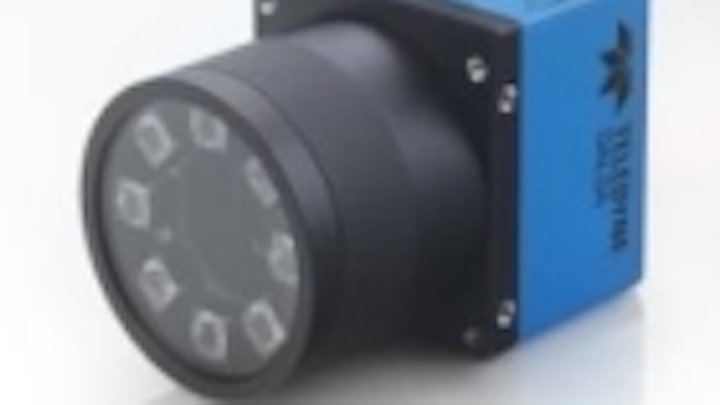

Teledyne DALSA has announced the launch of its next generation of smart cameras, the BOA2 series, which feature higher-resolution imaging, dual-core processing, and embedded iNspect Express application software. Three BOA 2 models are currently available, the BOA2 XA2 (2 MPixel), BOA2 XA3 (3 MPixel), and BOA2 XA5 (5 MPixel), each of which features a CMOS image sensor with 5 µm pixel size. The smart cameras—which feature 1.5 GHz dual core processing—can achieve frame rates of 80 fps, 60 fps, and 40 fps, respectively, and also feature GigE and RS232 communications. Additionally, the cameras feature 2 GB of storage and 1 GB of program memory, and an IP67 enclosure. BOA2 camera cameras are particularly well suited for industrial inspection and factory automation applications, according to Teledyne DALSA.

To Learn More:

Contact:
Teledyne DALSA
Headquarters: Waterloo, ON, Canada
Product: BOA2 smart cameras
Key Features: 1.5 GHz dual core processing, 2/3/5 MPixel CMOS image sensors with 5 µm pixel size, embedded iNspect Express software.

What Teledyne DALSA says:
View more information on BOA2 smart cameras.
