Smart camera from ADLINK to be showcased at Vision China

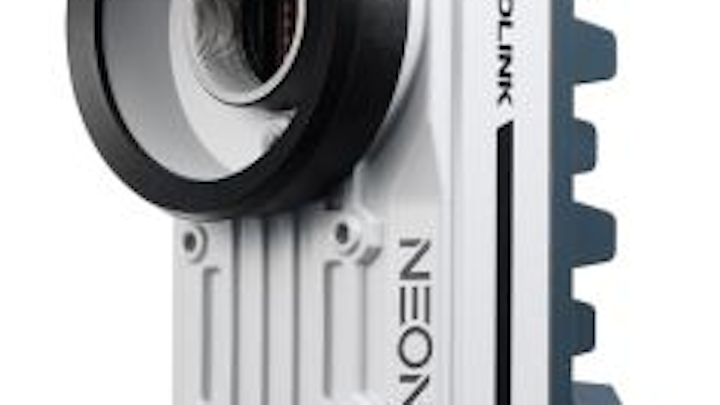

At Vision China, ADLINK Technology will showcase the NEON-1040 x86 smart camera, which features a quad core Intel Atom processor E3845 1.9 GHz.
At Vision China, ADLINK Technology will showcase the NEON-1040 x86 smart camera, which features a quad core Intel Atom processor E3845 1.9 GHz. The camera is equipped with a 1" monochrome global shutter CMOSIS CMV4000 CMOS image sensor with 5.5 µm pixel size that achieves a frame rate of 60 fps. The 4 MPixel open-architecture NEON-1040 features FPGA coprocessors, as well as GigE, USB 2.0, and RS-232 ports, a C-Mount lens mount, and 32 GB storage for image processing, programs, and archiving. In addition, the NEON-1040 features software support with STEMMER Common Vision Blox, MVTec HALCON, and other machine vision software.
Vision China booth number: N1-1208
To Learn More:
Contact: ADLINK Technology, Inc.
Headquarters: San Jose, CA, USA
Product: NEON-1040 smart camera
Key Features: Quad core IntelAtomprocessor E3845 1.91GHz, 1” 4 MPixel global shutter CMOSIS CMV4000 image sensor, 5.5 µm pixel size, 60 fps, open architecture design.
Share new products that you think are particularly interesting or helpful by contacting James Carroll, Senior Web Editor, Vision Systems Design.
