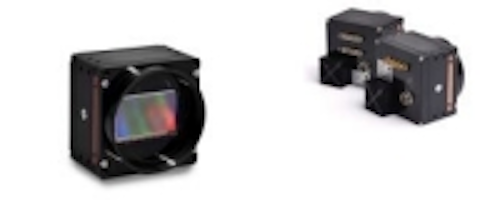

Designed for such tasks as wafer, solar panel, or displayinspection, the SVCam-SHR industrial camera from SVS-VISTEK is available with either a Camera Link or CoaXPress interface, and in color or monochrome versions. The camera is based on the 47 MPixel progressive scan ON Semiconductor KAI-47051 CCD image sensor, which features a pixel size of 5.5 µm and can achieve frame rates of up to 7 fps. With a lens mount with an M72 thread and a flange distance of 19.55 mm, high-end lens systems can be mounted to the SHR for a variety of applications, suggests SVS-VISTEK. Additionally, the GenICam-compliant camera features 14-bit digitization (transmitted as 8 or 12 bits), CCD tap balancing (auto/manual), user-defined defect pixel correction, area of interest/partial scan, readout control, and white balance.
To Learn More:
Headquarters: Seefeld, Germany
Key Features: Available in CoaXPress or Camera Link, 47 MPixel progressive scan ON Semiconductor KAI-47051 CCD image sensor, 5.5 µm pixel size, 7 fps frame rate.
What SVS-VISTEK says:
View more information on the SVCam-SHR industrial camera.
