ISVI CoaXPress cameras offer speed and resolution with GenICam connectivity

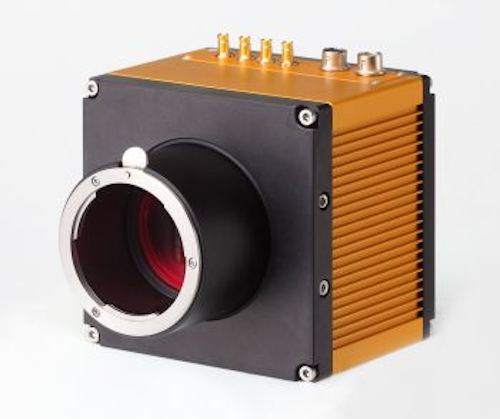

The 25-Mpixel, 53 frames/sec IC-X25CXP and 12-Mpixel, 175 frames/sec IC-X12CXP CoaXPress cameras offered by Industrial Sensor Vision International (ISVI) Corp. employ color and monochrome global- and rolling-shutter CMOS sensors.

ISVI CoaXPress cameras offer speed and resolution with GenICam connectivity
ISVI CoaXPress cameras offer speed and resolution with GenICam connectivity

The 25-Mpixel, 53 frames/sec IC-X25CXP and 12-Mpixel, 175 frames/sec IC-X12CXP CoaXPress cameras employ color and monochrome global- and rolling-shutter CMOS sensors, with 4.5 × 4.5-µm and 5.5 × 5.5-µm pixel sizes, respectively. Both cameras feature region of interest (ROI), binning, and subsampling; plug-and-play GenICam connectivity; auto and manual white balance; and various exposure and gain controls. IC-X25CXP achieves 1-lux sensitivity; IC-X12CXP, 4.64 v/lux-sec sensitivity. Both cameras are available with F-mount or M42 lens mount.
Industrial Sensor Vision International (ISVI) Corp.
Cheshire, CT, USA


-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---

NEW PRODUCT PRESS RELEASE

Industrial Sensor Vision International Corporation.
290 Highland Ave. 2nd Floor
Cheshire, CT. 06410
Al@isvi-corp.com

ISVI is specialized in advanced cameras technology for the High resolution Fast speed cameras for the Automation, high speed inspection, PCB and wafer inspection.

ISVI introduced the following Coaxial Express cameras and will exhibit at the Stuttgart Visions show 2012:
12 Mega Pixel / 1750 FPS CXP
4,096 (H) X 3,072 (V) CMOS sensor and 5.5um X5.5 um pixel size
Sensitivity 4.64 v/ Lux.s and available with F-mount or M42 mount

DATA SHEET:
12MP / 175 FPS (IC-X12CXP)
Sensor 12M COLOR & MONO CMOS Sensor (Global & Rolling Shutter)
Pixel Size 5.5um x 5.5um
Resolution 4,096(H) * 3,072(V)
Frame Rate 175fps @ 8bit CXP-6 4CH, 150fps @ 10bit CXP-6 4CH, 75fps @ 12bit CXP-6 4CH
Video Output 8bit / 10bit / 12bit Raw Bayer CXP-6 (25Gbps / 4 Channel)
Support CXP Config CXP-1(1.25Gbps/CH) / CXP-2(2.5Gbps/CH) / CXP-3(3.125Gbps/CH) CXP-5(5Gbps/CH) / CXP-6(6.25Gbps/CH)
Sensitivity 4.64 V / lux.s
S/N Ratio 42dB over
Dynamic Range 60dB
Gamma / Knee Fixed 0.45 or 256 Point LUT
Operating Temp Typical 0c ~ +40c / Max 0c ~ +70c (Image & Life Cycle cannot Guarantee)
Lens Mount F Mount / M42 Mount
Dimensions 95mm (H) * 95mm (W) *75.5mm (L)
Shock / Vibration 25G (Half Sine 6~10ms XYZ Axis) / 10G (5~150Hz 1 minute XYZ Axis)
Weight & Voltage About 900g / +24 DC Input
White Balance Color only Support, Auto / Manual Preset (3200K, 4600K, 5600K)

25 Mega Pixel / 53 FPS CXP
5,056 (H) x 5.056 (V) CMOS sensor and 4.5um X4.5um pixel size
Sensitivity 1 Lux and avalibale with F-mount or M42 lens mount
Both cameras available in color or B/W, Global shutter and plug and play Gen Icam.

DATA SHEET:
25MP / 53 FPS (IC-X25CXP)

Sensor 25M COLOR & MONO CMOS Sensor (Global & Rolling Shutter)
Pixel Size 4.5um x 4.5um
Resolution 5,056(H) * 5,056(V)
Frame Rate 53fps @ 8bit CXP-6 4CH / 53fps @ 10bit CXP-6 4CH
Video Output 8Bit / 10bit Raw Bayer CXP-6 (25Gbps / 4 Channel)
Support CXP Config CXP-1(1.25Gbps/CH) / CXP-2(2.5Gbps/CH) / CXP-3(3.125Gbps/CH) CXP-5(5Gbps/CH) / CXP-6(6.25Gbps/CH)
Sensitivity 1.0 Lux (On Sensor, Max, Gain, Shutter Off, 50% Video)
S/N Ratio 42dB over
Dynamic Range 53dB
Gamma / Knee Fixed 0.45 or 256 Point LUT
Operating Temp Typical 0c ~ +40c / Max 0c ~ +70c (Image & Life Cycle cannot Guarantee)
Lens Mount F Mount / M42 Mount
Dimensions 95mm (H) * 95mm (W) *75.5mm (L)
Shock / Vibration 25G (Half Sine 6~10ms XYZ Axis) / 10G (5~150Hz 1 minute XYZ Axis)
Weight & Voltage About 900g / +24 DC Input
White Balance Color only Support, Auto / Manual Preset (3200K, 4600K, 5600K)

SOURCE: Industrial Sensor Vision International (ISVI) Corp.
