Odos Imaging releases time of flight 3D vision system

Odos Imaging’s real.iZ-1K vision system utilizes a pulsed method of laser illumination in which very short, intense pulses of invisible light (905 nm) are used to illuminate a scene. The vision system is suitable for use in factory automation, transportation, security and surveillance, and media applications.

Nov 5th, 2013

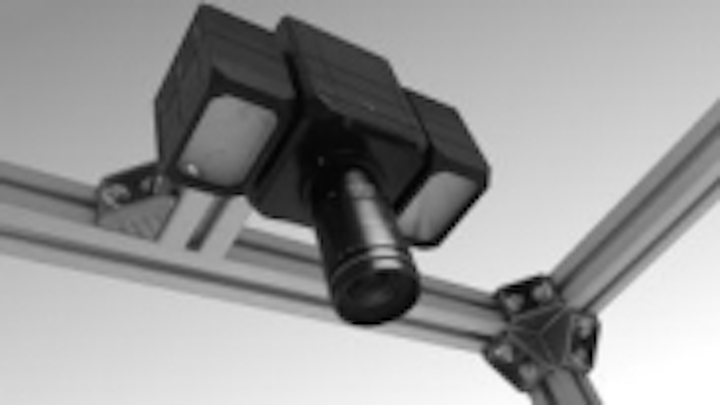

Content Dam Vsd En Articles 2013 11 Odos Imaging Releases Time Of Flight 3d Vision System Leftcolumn Article Thumbnailimage File

odos imaging’s real.iZ-1K vision system utilizes a pulsed method of laser illumination in which very short, intense pulses of invisible light (905 nm) are used to illuminate a scene. The intensity of the pulse minimizes the effect of ambient light and enables large distances to be measured. The 1.3 MPixel real.iZ-1K system features a pulse-based time of flight sensor, 1280 x 1024 pixels, 0.5m – 10m range, 50 fps frame rate, and user-defined resolution or region of interest. In addition, in features a GenICam GigE-compliant interface, and proprietary algorithms which convert detected pulses into a range measurement. The vision system is suitable for use in factory automation, transportation, security and surveillance, and media applications and will be showcased at SPS IPC Drives in Nuremberg, Germany from November 26-28, 2013.

SPS IPC Drives booth number: 7A-642

To Learn More:

Contact:odos imaging
Headquarters: Edinburgh, UK
Product: real.iZ-1K vision system
Key Features: 1.3 MPixels, pulse-based time of flight sensor, 1280 x 1024 pixels, 0.5m – 10m range, 50 fps frame rate.

What odos imaging says:

View more information on the real.iZ-1K vision system.

View More Products| Locate a vendor or system integrator | Receive e-mail updates

Share new products that you think are particularly interesting or helpful by contacting James Carroll, Senior Web Editor, Vision Systems Design.
