CCD image sensors from Truesense Imaging feature 7.4 micron pixel size

KAI-02170 and KAI-04070 image sensors, the latest members of the Truesense 7.4 µm interline transfer CCD family from Truesense Imaging, are suited for use in industrial imaging and inspection, traffic, and surveillance applications

Content Dam Vsd Online Articles 2013 09 Truesense Ccd Copy

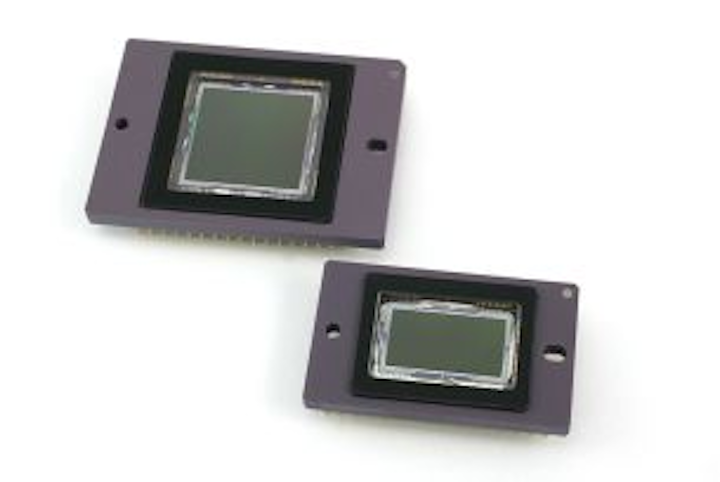

KAI-02170 and KAI-04070 image sensors are the latest members of the Truesense 7.4 µm interline transfer CCD family from Truesense Imaging. The 2.1 MPixel KAI-02170 sensor features 1920 x 1080 pixels in a 1” optical format with frame rates up to 60 fps. The 4.2MPixel KAI-04070 image sensor features 2040 x 2040 pixels in a 4/3” optical format with frame rates up to 28 fps. Both the KAI-02170 and KAI-04070 image sensors feature 7.4 µm x 7.4 µm pixel size and are suited for use in industrial imaging and inspection, traffic, and surveillance applications

To Learn More:

Contact:Truesense Imaging
Headquarters
: Rochester, NY, USA
Product:
KAI-02170 and KAI-04070 CCD image sensors
Key Features:
4/3” format, 7.4 µm x 7.4 µm pixel size, 60 fps (KAI-02170), 28 fps (KAI-04070), 1920 x 1080 pixels (KAI-02170), and 2040 x 2040 pixels (KAI-04070).

What Truesense Imaging says:
View more information on the KAI-02170.
View more information on the KAI-04070.
