• Sofradir launches new infrared camera core

    Sofradir EC’s ATOM80 thermal infrared imaging camera core—which consists of a microbolometer array with 80 x 80 pixels and a spectral response of 8 x 14 µm—enables low-cost thermal imaging, building energy efficiency management, advanced presence detection, thermography, and automotive safety sensing.
    Oct. 14, 2013
    2 min read

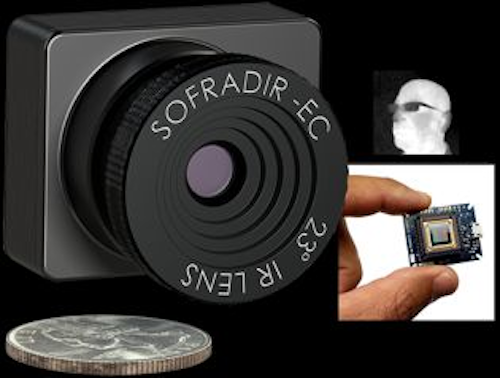

    Sofradir EC’s ATOM80 thermal infrared imaging camera core consists of a microbolometer array with 80 x 80 pixels and a spectral response of 8 x 14 µm. It features a thermal sensitivity of less than 0.1°C at standard video rates, an optical field of view of 23° x 23° HxV, a frame rate of 30 Hz, and an operating temperature range of -20°C to 60°C. In addition, the camera core has a USB 2.0 electrical interface and 14-bit streaming digital output. The ATOM80 enables a variety of applications, including low-cost thermal imaging, building energy efficiency management, advanced presence detection, thermography, and automotive safety sensing.

    To Learn More:

    Contact:
    Sofradir EC
    Headquarters
    : Fairfield, NJ, USA
    Product:
    ATOM80 thermal infrared imaging camera core
    Key Features: 80 x 80 pixels, spectral response of 8 x 14 µm, thermal sensitivity of less than 0.1°C at standard video rates, optical field of view of 23° x 23° HxV, frame rate of 30 Hz, and an operating temperature range of -20°C to 60°C.

    What Sofradir says:
    View more information on the ATOM80.
