LATAB ringlights from Polytec provide shadow-free lighting inside cylindrical objects

Feb. 11, 2013
LATAB, a producer of LED illumination for machine-vision applications, offers a highly homogenous ringlight, available through distributor Polytec.

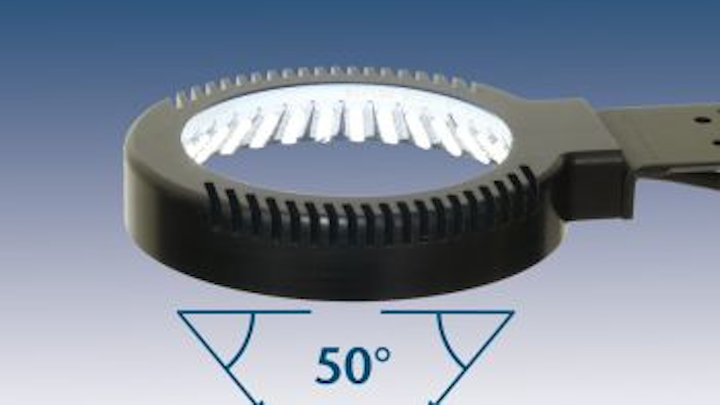

LATAB, a producer ofLED illumination for machine-vision applications, offers a highly homogenous ringlight, available through distributor Polytec. The ringlight produces a 50-degree inward aligned light output, placing it between conventional ringlights and darkfield lights for illuminating inside cylindrical objects under inspection without shadowing. LATAB controllers and third-party controllers support continuous light and stroboscope modes. LED lights are available in two sizes and red, white, infrared (IR), blue, and green models.
LATAB, Vällingby, Sweden
Distrib. by Polytec GmbH, Waldbronn, Germany

-- Posted byVision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide



New Ring Light with aligned Light Output

LATAB, the Swedish specialist for LED illumination in machine vision applications presents a new highly homogenous ring light. It is characterized by a 50 degree inward aligned light output which places it between conventional ring lights and dark field lights.

This kind of illumination is e.g. used for the shadow free lighting of the inside of cylindrical objects.

Continuous light and stroboscope mode is possible. Especially for this kind of illumination heads developed LATAB controllers as well as controllers from third party suppliers can be used. The ring light is available in two sizes and five light colors: red, white, infrared, blue and green. The aluminum casing is designed to withstand harsh industrial applications and has fittings for Bosch or Montech profiles.

For further information about LATAB LED illuminations visit
Additional web site information on ringlight products:


Ring lights provide a uniform and shadow free lighting. A diffuser (removable) for homogeneous light is included.

In order to avoid reflection, some ring lights can be used in combination with polarization filters. Brackets and diffusers are included (no. SXX3 010213, for details see bracket options).

The standard light beam angle is 12°. Custom adjustment from 0° to 40° on request.

The special RGB lights are built with high power three chips LEDs red, green, and blue, enabling the use of each color separately or in combination. White light can be achieved by setting each channel to the same intensity level. There also exists a ring light with lens thread.

Polytec GmbH
Polytec-Platz 1-7
D-76337 Waldbronn / GERMANY
Phone Number: +49 (0) 7243 604-1800
Fax: : +49 (0) 7243 69944
E-mail: [email protected]

SOURCE: Polytec
