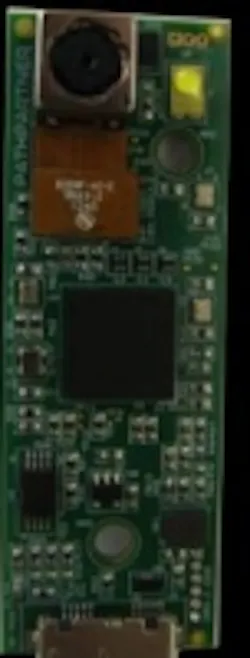

PathPartner Technology’s 5 MPixel autofocus HD USB 3.0 camera module features an OV5640 CMOS image sensor from OmniVision and achieves a frame rate of 30 fps at full resolution. The 60 mm x 20 mm board-level camera features anti-shake technology, AF control, an integrated JPEG compression engine, and automatic image control functions. The 8 MPixel autofocus HD USB 3.0 camera features an OV8825 CMOS image sensor from OmniVision and achieves a frame rate of 30 fps at rull resolution. Data from the 65 mm x 20 mm board-level camera is output via a MIPI interface and its OmniBSI + Pixel architecture enhance image and video capture in bright and low-light conditions. Both cameras are suitable for use in embedded machine vision applications.
To Learn More:
Contact: PathPartner Technology
Headquarters: Bangalore, India
Product: 5 MPixel and 8 MPixel USB 3.0 camera modules
Key Features: OV5640 CMOS image sensor from OmniVision (5 MPixel), OV8825 CMOS image sensor from OmniVision (8 MPixel), 30 fps at full resolution, USB 3.0 interface (both models).
What PathPartner Technology says:
View more information on the 5 MPixel cameras.
View more information on the 8 MPixel cameras.
