New Scale Technologies releases all-in-one smart focus module

Designed as a drop-in replacement for the company’s original M3-F focus module, the M3-FS smart focus module is a miniature all-in-one (no external control board needed) focus module designed for industrial, medical, and scientific OEM cameras that offers a 3x improvement in dynamic tilt and linear accuracy.

Aug 14th, 2014

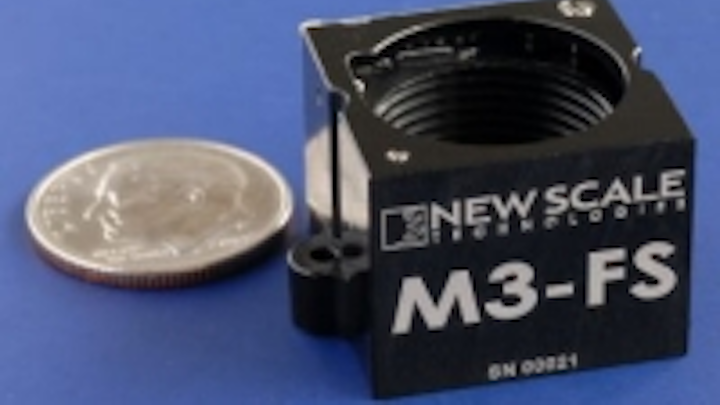

Content Dam Vsd En Articles 2014 08 New Scale Technologies Releases All In One Smart Focus Module Leftcolumn Article Thumbnailimage File

Designed as a drop-in replacement for the company’s original M3-F focus module, the M3-FS smart focus module is a miniature all-in-one (no external control board needed) focus module designed for industrial, medical, and scientific OEM cameras that offers a 3x improvement in dynamic tilt and linear accuracy. (Linear accuracy of +/- 12 µm and dynamic tilt of <+/- 0.05°). The M3-FS is an M16x1mm lens type, but accepts M12x0.5mm with standard adapter. It features a 17 x 17 mm image sensor area, a lens position resolution of 0.5 µm, embedded closed-loop control, and New Scale Technologies' proprietary SQUIGGLE piezo motor, drive, sensing, guide and control technologies. The module takes motion commands from the camera processor and operates on 3.3 VDC. In addition, the module includes New Scale Pathway software and a USB adapter to connect the module to a PC for evaluation and system development.

To Learn More:

Contact:
New Scale Technologies
Headquarters
: Victor, NY, USA
Product:
M3-FS focus module
Key Features:
17 x 17 mm image sensor area, lens position resolution of 0.5 µm, embedded closed-loop control, SQUIGGLE technology, linear accuracy of +/- 12 µm, dynamic tilt of <+/- 0.05°).

What New Scale Technologies says:
View more information on the M3-FS focus module.
