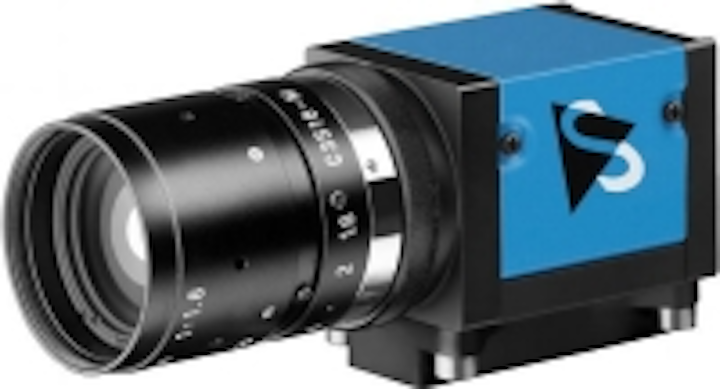

USB 3.0 cameras offered by The Imaging Source are available in color or monochrome in models ranging from VGA to the 13 MPixel DFK AFU130-L53 camera. DFK AFU130-L53 color cameras, which are the latest USB 3.0 cameras released by The Imaging Source, feature 1/2.5” Sony Exmore CMOS image sensors and can capture full HD video at up to 30 fps and 13 Mpixel images at 1 fps. In addition, the cameras feature integrated 5.3 mm lenses, industrial housing, and accompanying software, which includes drivers for LabView, HALCON, DirectX, Twain and WDM.
Additional USB 3.0 camera models from The Imaging Source are available with Aptina and Sony sensors and can capture video up to 120 fps. In addition, the cameras ship with control and acquisition software for Windows XP, Vista, 7, and 8.
Icron’s Spectra 3001-15 is a 15-meter bus-powered copper cable that extends USB 3.0 at 5Gbps and features locking connectors per the AIA’s USB3 Vision specifications. The cable provides full 5V, 900mA of current and includes the ExtremeUSB suite of features, which includes transparent USB extension, true plug and play (no software drivers) and compatibility with all major operating systems, including Windows 8.
